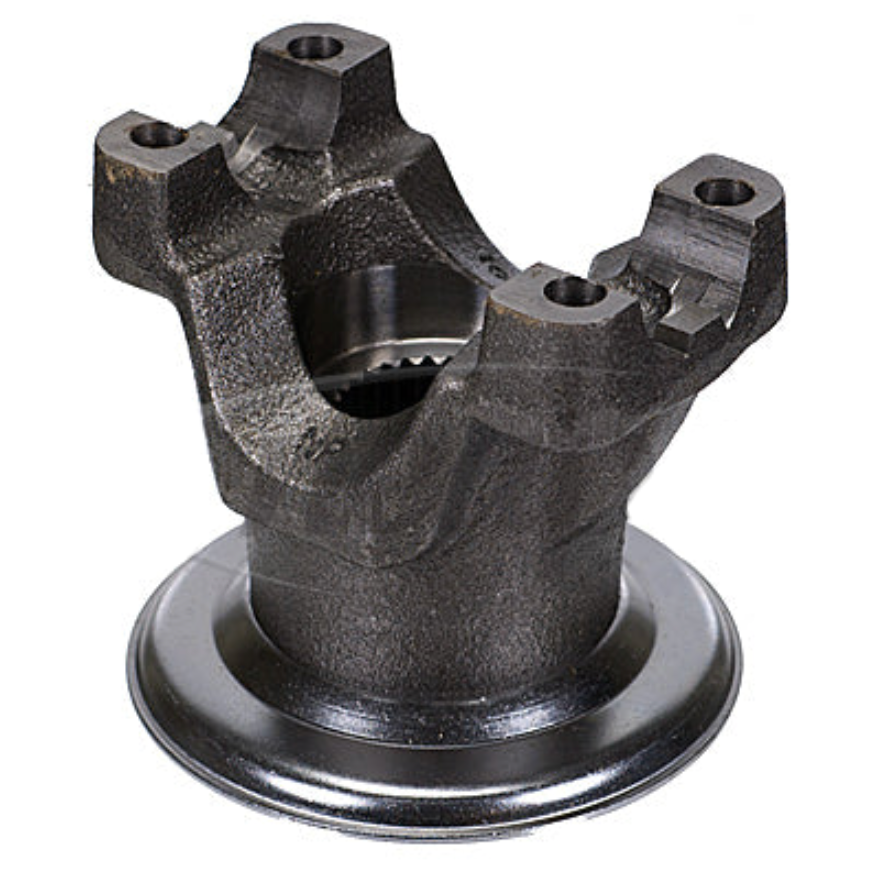

Neapco N2-4-Fd01X End Yoke

Vendor: Neapco, Sku: 'N2-4-FD01X

Product Description

Driveshaft End Yoke

Specifications:
CL TO END OF HUB: 3.00
DL SERIES: 1310HR
HUB DIAMETER: 1.55
JOINT ANGLE: 22.5
LENGTH THROUGH BORE: 1.50
SPLINE / NUMBER TEETH: 1.146-26
UJ RETENTION: U-Bolt

Product Description: U-Bolt Construction

 VMRS: 024-001-003

Sku: 'N2-4-FD01X
Vendor: Neapco
$97.74
Maximum quantity available reached.

DETAILS

Manufacturer: Neapco
Centerline of Joint to End of Spline (s): 3.88"
Manufacturer Part Number: 'N2-4-FD01X
U-Joint Series: 1310
Spline Count: 26
Spline OD: ø
Bore Length: 1.50"
Cap OD (B): 1.063"
Yoke Span (A): 3.219"
Hub Dia.: 1.55"
Style: Outside Snap Ring
Rear Axle Type:
Joint Angle:
22.5
Counterbore Depth:
ø

Bearing Strap Construction Diagram

.
