Ford 28 Spline 1310 Series

Vendor: Neapco, Sku: N2-3-12671X

Product Description

Transmission Applications: Fits various 28 spline transmission output shafts including: C4, AOD, T-5, T-10, Top Loader, Tremec and more.

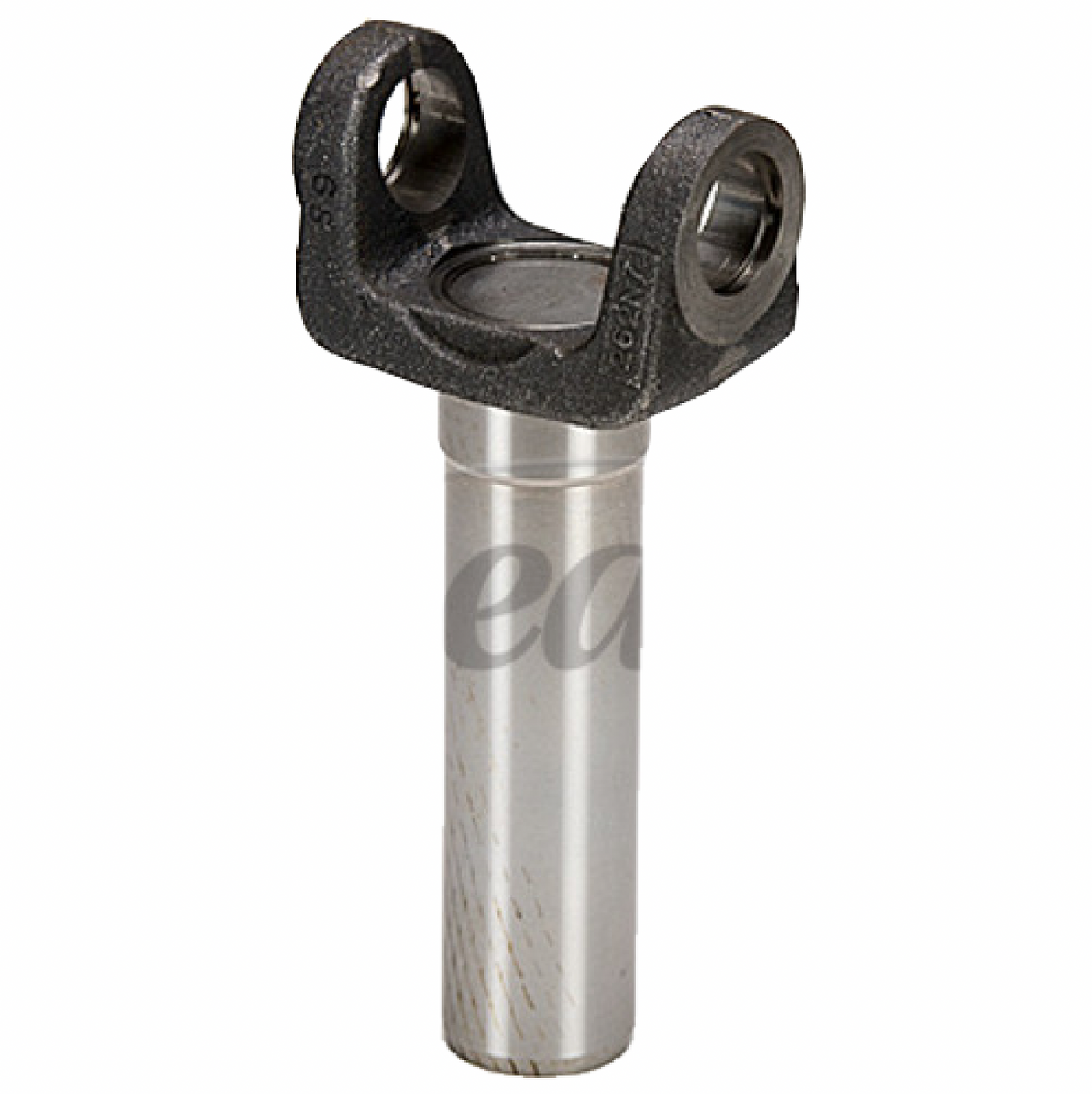

Drive Shaft Transmission Slip Yoke
Neapco Part Number: N2-3-12671X

 CL TO END OF SPLINE (in)
7.03
CL TO FACE WASHER (in)
1.00
DL SERIES
1310
JOINT ANGLE (degrees)
15
SEAL DIAMETER (in)
1.60 / 1.50
SPLINE / NUMBER TEETH
1.219-27/28
SPLINE TYPE
Full Spline
Sku: N2-3-12671X
Vendor: Neapco
$84.44
Maximum quantity available reached.

DETAILS

U-Joint Series: 1310
Manufacturer: Neapco
Snap Ring Type:
OEM/Alternate Part Number:
00083869021362
Transmission Make: Ford
Transmission Model: Transmission Applications: Fits various 28 spline transmission output shafts including: C4, AOD, T-5, T-10, Top Loader, Tremec and more.
Spline Count: 27/28
Spline OD: 7.03" (CL to End)
Overall Length (J): 7.03" (CL to End)
Bearing Cap Diameter (D): 1.063"
Dimension over Caps (E): 3.219"
Hub Diameter: (R) 1.60" / 1.50"
Counterbore: ø

Transmission Slip Yoke Diagram

.
