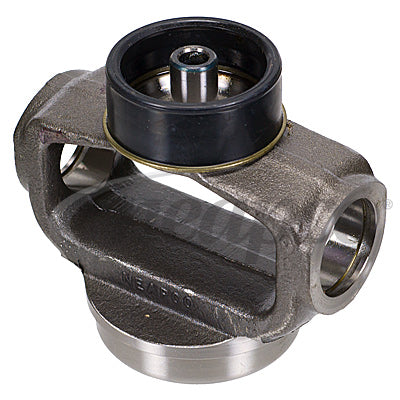

Neapco N2-28-3277X CV Ball Stud Tube Yoke

Vendor: Neapco, Sku: N2-28-3277X

Product Description
 This part is drop shipped from the manufacturer and will ship at the earliest available time. Average time to ship is 1-3 business days from when you place the order. You can contact Action Machine Inc. to confirm product availability and for an estimated time of arrival. CHAT | (574)287-9650

Driveshaft Double Cardan
CV Ball Stud Tube Weld Yoke

Specifications

Ball Stud Diameter: 0.50 Inch
Ball Stud Length:  0.60 Inch
Butt Diameter:  2.32 Inch
CL to End of Ball Stud:  1.66 Inch
CL to Point of Weld:  1.38 Inch
U-Joint Series:  1330
Joint Angle (Max):  9 Degrees
Tubing Diameter and Wall:  2.500 X 0.095 Inch

VMRS: 024-002-066


Compatible Part:
Neapco N2-86-418 Flinger/Boot

Alternate Part:
Spicer 2-28-3277X CV Ball Stud Tube Yoke

Sku: N2-28-3277X
Vendor: Neapco
$103.55
