Neapco N2-28-2807X CV Ball Stud Tube Yoke (Obsolete)

Vendor: Neapco, Sku: 'N2-28-2807X

Product Description

This part is discontinued by the manufacture with no direct replacement. Call today for alternate driveshaft options.

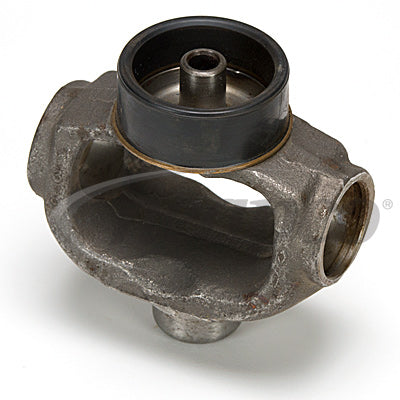

Double Cardan CV Ball Stud Tube Weld Yoke

Specifications

Ball Stud Diameter: 0.50 Inch
Ball Stud Length: 0.60 Inch
Butt Diameter: 1.02 Inch
Center Line to End of Ball Stud: 1.64 Inch
Center Line to Point of Weld: 1.44 Inch
Series: 1310
U-Joint Width: 3.219 Inch
U-Joint Cap Diameter: 1.062 Inch
Joint Angle (Max): 13
Tubing Diameter and Wall: 1.280 X 0.120 Inch




Alternate Part Options:
Flinger/Boot Part Number: N2-86-418

Sku: 'N2-28-2807X
Vendor: Neapco
