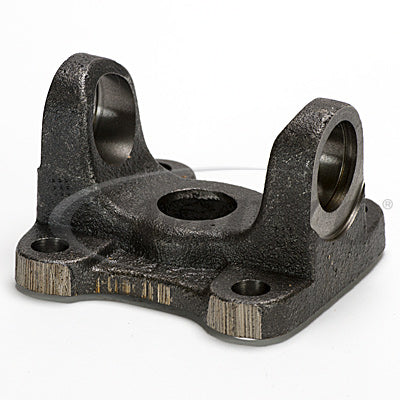

Neapco N2-2-780 Flange Yoke

Vendor: Neapco, Sku: 'N2-2-780

Product Description

Alternate Part Option:

See 3102-185 for an alternate part option.



Driveshaft Flange Yoke

Specifications

Bolt Circle:
3.67 Inch
Series:
1310
U-Joint Lock Up:
3.219 Inch
Bearing Cap Diameter:
1.063 Inch
Flange Face to Center Line:
1.56 Inch
Hole / Thread Size:
0.45 Inch
Joint Angle:
20 Degrees
Number of Bolt Holes:
4
Pilot Diameter:
1.81 Inch Male

VMRS: 024-002-016

Sku: 'N2-2-780
Vendor: Neapco
$39.66
Maximum quantity available reached.

DETAILS

U-Joint Series:
1310
U-Joint Cap Size (B): 1.063"
U-Joint Width (A): 3.219"
Snap Ring Type: Outside Snap Ring
Manufacturer: Neapco
Pilot Diameter (G): 1.81" M
Bolt Circle (E): 1.81"
Manufacturer Part Number: 'N2-2-780
Flange or Swing Diameter (J):
Bolt Hole (F):
Number of Bolt Holes: 4
OEM/Alternate Part Number:
083869021294
