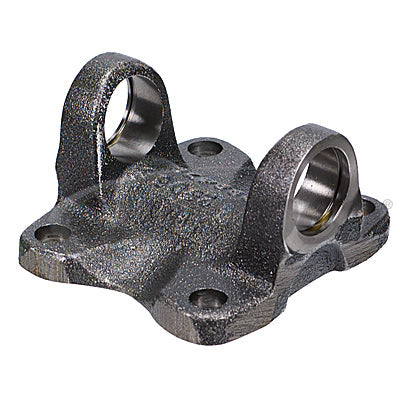

Neapco N2-2-479 Flange Yoke

Vendor: Neapco, Sku: 'N2-2-479

Product Description

Driveshaft Flange Yoke

Specifications

BOLT CIRCLE:
3.75"
DL SERIES:
1310
U-JOINT LOCK UP:
3.219”
BEARING CAP DIAMETER:
1.063”
FLANGE FACE TO CL:
1.38"
HOLE/THREAD SIZE:
0.45"
JOINT ANGLE:
20
NUMBER OF BOLT HOLES:
4
PILOT DIAMETER:
2.75" Male

VMRS: 024-002-016

Sku: 'N2-2-479
Vendor: Neapco
$23.28
Maximum quantity available reached.

DETAILS

U-Joint Series:
1310
U-Joint Cap Size (B): 1.063"
U-Joint Width (A): 3.219"
Snap Ring Type: Outside Snap Ring
Manufacturer: Neapco
Pilot Diameter (G): 2.75"
Bolt Circle (E): 3.75"
Manufacturer Part Number: 'N2-2-479
Flange or Swing Diameter (J): 1.38"
Bolt Hole (F): Drilled
Number of Bolt Holes: 4
Flange Face to Centerline U-Joint (H): 1.38"
OEM/Alternate Part Number:
083869005355
