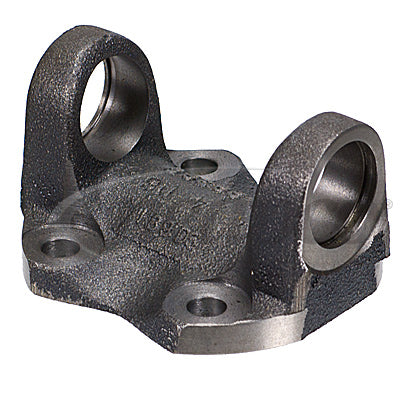

Neapco N2-2-349 Flange Yoke

Vendor: Neapco, Sku: N2-2-349

Product Description

Driveshaft Flange Yoke

Specifications

BOLT CIRCLE:
2.88 Inch
DL SERIES:
1310
U-JOINT LOCK UP:
3.219 Inch
BEARING CAP DIAMETER:
1.063 Inch
FLANGE FACE TO CL:
1.38 Inch
HOLE/THREAD SIZE:
0.39 Inch
JOINT ANGLE:
20 Degree
NUMBER OF BOLT HOLES:
4
PILOT DIAMETER:
3.63 Inch Male

VMRS: 024-002-016

Sku: N2-2-349
Vendor: Neapco
$74.90
Maximum quantity available reached.

DETAILS

U-Joint Series:
1310
U-Joint Cap Size (B): 1.063"
U-Joint Width (A): 3.219"
Snap Ring Type: Outside Snap Ring
Manufacturer: Neapco
Pilot Diameter (G): 3.630" M
Bolt Circle (E): 2.880"
Manufacturer Part Number: N2-2-349
Flange or Swing Diameter (J):
Bolt Hole (F):
Number of Bolt Holes: 4
OEM/Alternate Part Number:
00083869005331
