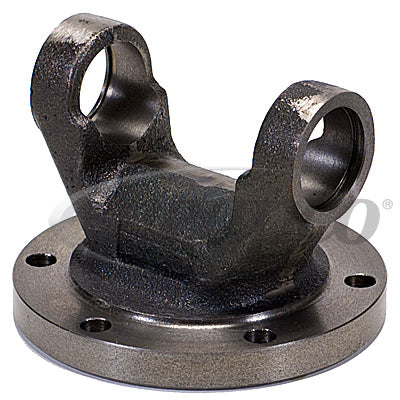

Neapco N2-2-206 Flange Yoke

Vendor: Neapco, Sku: 'N2-2-206

Product Description

Driveshaft Flange Yoke

Specifications

BOLT CIRCLE:
3.39"
DL SERIES:
1310
U-JOINT LOCK UP:
3.219”
BEARING CAP DIAMETER:
1.063”
FLANGE FACE TO CL:
2.19"
HOLE/THREAD SIZE:
0.32"
JOINT ANGLE:
20
NUMBER OF BOLT HOLES:
6
PILOT DIAMETER:
3.94" Male

VMRS: 024-002-016

Sku: 'N2-2-206
Vendor: Neapco
$63.62
Maximum quantity available reached.

DETAILS

U-Joint Series:
1310
U-Joint Cap Size (B): 1.063"
U-Joint Width (A): 3.219"
Snap Ring Type: Outside Snap Ring
Manufacturer: Neapco
Pilot Diameter (G): 3.94"
Bolt Circle (E): 3.39"
Manufacturer Part Number: 'N2-2-206
Flange or Swing Diameter (J):
Bolt Hole (F): Drilled
Number of Bolt Holes: 6
Flange Face to Centerline U-Joint (H): 2.19"
OEM/Alternate Part Number:
083869021690

“Outside

.
