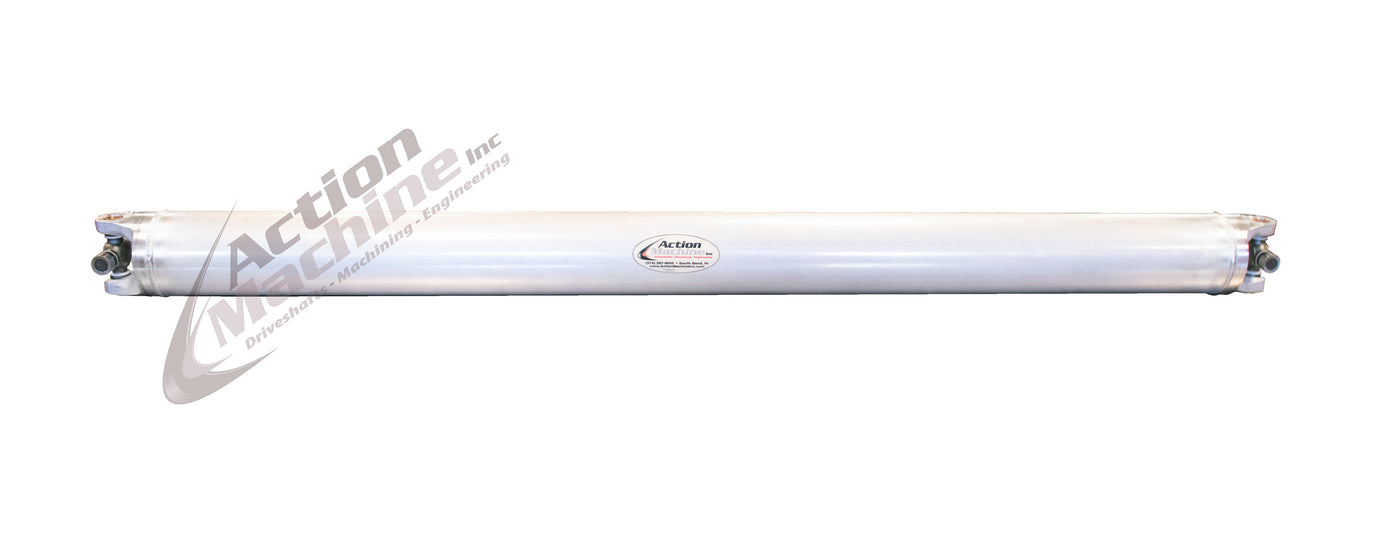

Custom Driveshaft - Aluminum, 5" OD, 1410 Series

Product Description

Custom Driveshaft - Aluminum, 5" OD, 1410 Series

FREE GROUND SHIPPING

Yoke Material
Aluminum 6061-T6 Forged Yoke
Tube Material .125 WALL 6061-T6 Seamless
Tube Outside Diameter 5" OD (Measuring Guide - Tube OD)
U-Joint

Spicer/Dana
1410 Series (Measuring Guide - U-Joint)
U-Joint Size: 1 3/16" Cap x 4 3/16" Span
Premium Non-Greasable

Max Length  86 inches - Center to Center of U-Joint
(Measuring Guide - Driveshaft Length)


Quality Aluminum Driveshaft

When you need a driveshaft that is lightweight, can handle higher torque loads and can give you a nice polish finish, then consider an Action Machine aluminum driveshaft.  The Action Machine aluminum driveshaft is ideally suited for street rods, show cars, race cars and as OEM aluminum replacements.  While other driveline shops may use .065" wall or .083" wall tubing for their aluminum driveshafts, our volume purchasing allows us to use .125" wall tube for the same price as the thinner tube.  You have the best in aluminum performance no matter your application.



  • Free Ground Shipping
  • Seamless 6061-T6 Tubing
  • Precision Balancing
  • Premium Spicer U-Joints
  • Variable Length Options
  • Lifetime Warranty on our Welds
  • Fast Turn Around Time
  •



    Sku: 5A1410
    $519.09
    Maximum quantity available reached.

    How to Place a Custom Driveshaft Order

    Add your Driveshaft and critical parts to the cart:

    • Driveshaft
    • End Yoke
    • Slip Yoke

    Place your order, and check out.

    Respond to follow up E-mail with overall driveshaft dimensions.

    Use this guide to measure driveshaft length for most cars, vans, 2WD trucks, and some 4WD front and rear shafts.

    Measure Instructions: It is important to measure the driveshaft length when the vehicle’s axle is in the normal riding position. The axle must be supported on safety stands - not hanging down.



    Driveshaft Measuring Guide

     Transmission Output Type -
    SEAL

    Measurement (A) - DRIVESHAFT LENGTH:
    Measure from end of rubber seal on the transmission to the flat face of the end yoke or flange on the differential.

    Measurement (B) - SPLINE EXTRUSION LENGTH:
    Measure from end of rubber seal to end the of the transmission output. If spline is recessed in rubber seal, measurement can be noted as ø.

     Transmission Output Type -
    RUBBER BOOT EXTENSION

    Measurement (A) - DRIVESHAFT LENGTH:
    Measure from end of rubber boot extension on the transmission to the flat face of the end yoke or flange on the differential.

    Measurement (B) - SPLINE EXTRUSION LENGTH:
    Measure from end of rubber boot extension on the end of transmission output. If spline is recessed in rubber boot extension, enter ø.





     Other Measuring Guides



    U-Joint Identifier

    Are you looking for an inside or outside style U-Joint?





    Outside Snap Ring Style U-Joint

    Outside Snap Ring U-Joint

    Width:
    Distance measured over compressed bearing caps.

    Cap Diameter:
    Diameter measured over bearing cap.

     Common Outside Snap Ring U-joint Sizes and Series

     Series Width Cap Diameter.
    1210 2 7/16" = 2.438 1 1/16" = 1.063
    1310 3 7/32" = 3.219 1 1/16" = 1.063
    1310 Ford*
    3 7/32" = 3.219
    1 1/8" = 1.125
    1330 3 5/8" = 3.625 1 1/16" = 1.063
    1330 Ford* 3 5/8" = 3.625
    1 1/8" = 1.125
    1350 3 3/8" = 3.625 1 3/16" = 1.188
    1410 4 3/16 = 4.188
    1 3/16" = 1.188
    1415** 4.178 1 3/16" = 1.188
    1480 4 3/16 = 4.188 1 3/8" = 1.375
    1485** 4.178 1 3/8" = 1.375
    1550 4 31/32" = 4.969 1 3/8" = 1.375
    1555** 4.946 1 3/8" = 1.375
    * 1310 Ford & 1330 Ford have 1 1/8” cap at pinion yoke and 1 1/16” cap at driveshaft.
    ** 1415, 1485, 1555 only found on Chrysler and some GM vehicles with American Axle built driveshafts.





     Inside Snap Ring Style U-Joint

    U-Joint inside snap ring

    Width:
    Distance measured to the outer edge of the snap ring grooves.

    Cap Diameter:
    Diameter measured over bearing cap.

     Common  Inside Snap Ring U-joint Sizes and Series

     Series Width Cap Diameter.
    7260 Chrysler 2 1/8" = 2.125 1 5/64" = 1.078
    7290 Chrysler 2 5/8" = 2.625 1 1/8" = 1.125
    3R GM  2 9/16" = 2.563 1 1/8" = 1.125
