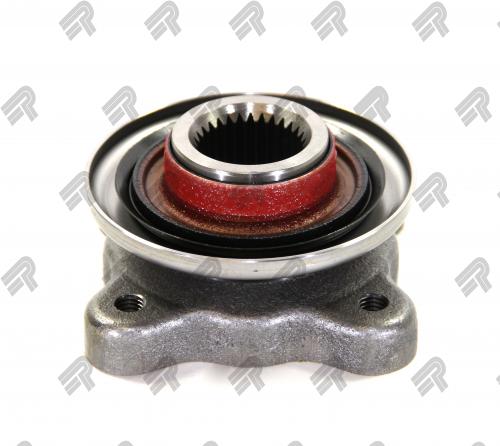

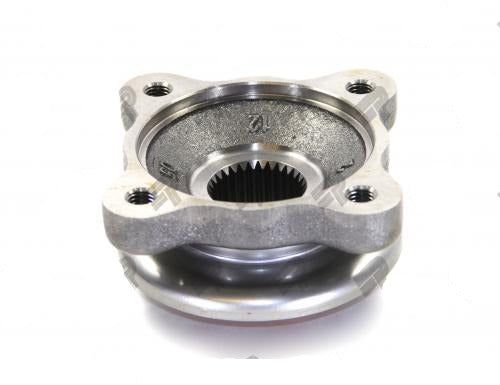

PTI 4801-301 Companion Flange

Vendor: PTI, Sku: 4801-301

Product Description

Drive Shaft Pinion / Companion Flange


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



End/Pinion Yoke Specifications

Spline Count:
30
Spline Diameter:
1.590 Inch
Hub Diameter:
2.370 Inch
Through Hole:
1.642 Inch
Center Line to End (Pilot): 3.750 Inch
Bolt Circle Diameter 4.750 Inch
Bolt Holes (x4) 0.475 Inch
Face to End: 2.504 Inch
Differential Model:
Chrysler/Dodge, AAM 10.5 Inch, 12 Bolt, Rear
Chrysler/Dodge, AAM 11.5 Inch, 12 Bolt, Rear
Class:
LD
Notes:
Includes sleeve 26060997
90 Hz Damper



How to Measure a Driveshaft Slip Yoke.

Application for the 10.5"

1 Tone GM Pickup: Rear 1973-2006
1 Ton GM Van: Rear
1973-2004
3/4 Ton GM Pickup: Rear 1973-2006
3/4 Ton GM Van:
Rear 1973-2006


Application for the 11.5"

1 Ton GM Pickup: Rear 2000-2006

3/4 Ton GM Pickup:
Rear 2000-2006


****


This part is compatible with:
SKU 26060977 : 10.5 Inch Pinion Sleeve
SKU 26064030 : 10.5 Inch /11 Inch Pinion Seal

Alternate Part Option:
AAM 40062272 Companion Flange

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help
CONTACT US |  CHAT | (574) 287-9650

Sku: 4801-301
Vendor: PTI
$93.36
