PTI 4104-03 End Yoke

Vendor: Action Machine INC, Sku: 4104-03

Product Description

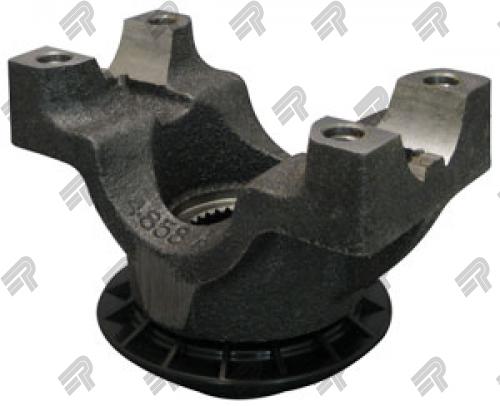

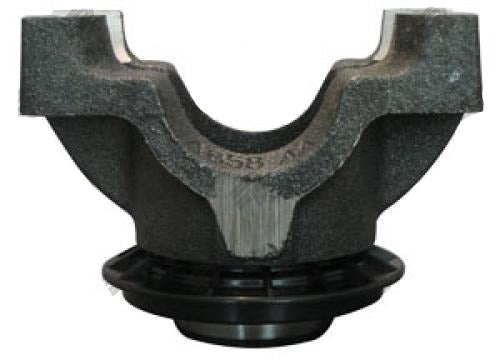

4104-03 End Yoke - Driveshaft
Strap Kit: 3-70-28X

Series 1410
Spline Count / No Teeth 31
Spline Diameter 1.343"
Hub Diameter 1.812"
Thru Hole 1.640"
Centerline To End 3.525"
Diff Model Ford 10.5

This 1410 pinion yoke fits the Ford 10.5" differential.
Applications for the Ford 10.5"
    Excursion: 2000 - 2004 (Rear)
    F250: 1999 - 2005 (Rear)
    F350: 1999 - 2004 (Rear)
Ford OEM# F81Z4851AB

Sku: 4104-03
$79.24
Maximum quantity available reached.

DETAILS

Manufacturer: Action Machine INC
Centerline of Joint to End of Spline (s): 3.525"
Manufacturer Part Number: 4104-03 4104-03 & 3-70-28X
U-Joint Series: 1410
Spline Count: 31
Spline OD: 1.343"
Bore Length: 1.640"
Cap OD: 1.188"
Yoke Span: 4.188"
Hub Dia.: 1.812"
Style: Outside Snap Ring
Rear Axle Type:
FORD 10.5"
Joint Angle:
ø
Counterbore Depth:
ø

Bearing Strap Construction Diagram

.
