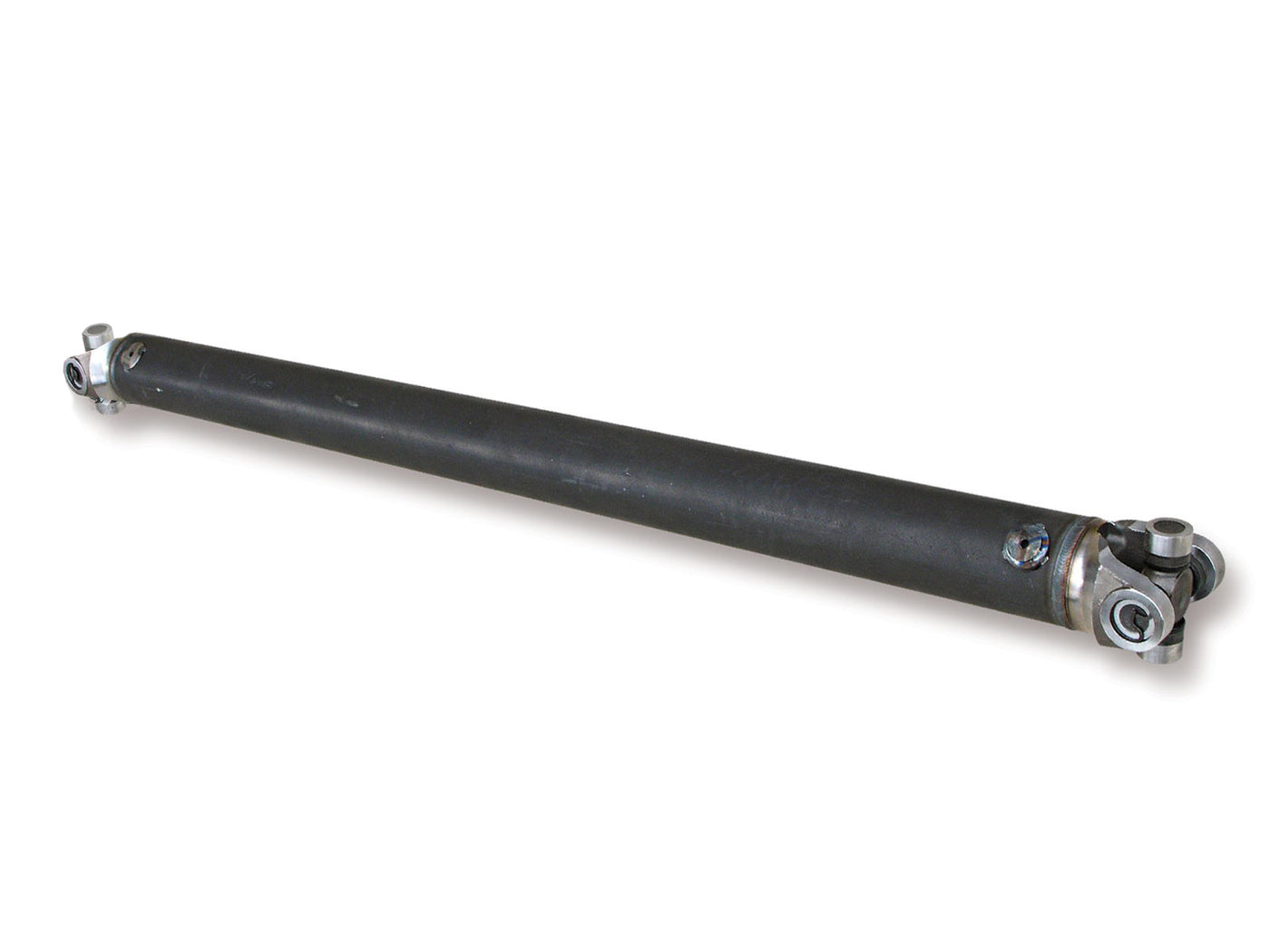

Custom Driveshaft - Steel, 3" OD, 3R Series

Product Description

Custom Driveshaft - Steel, 3 Inch OD, 3R Series

FREE GROUND SHIPPING INSIDE THE USA
(This product does not qualify for international shipping)

Weld Yoke Material:
Forged Steel
Tube Material: 0.083 Inch Wall DOM Seamless
Tube Outside Diameter: 3.0 Inch Outside Diameter
(Measuring Guide - Tube OD)
U-Joint:
Spicer/Dana 3R Series
Premium Non-Greasable
U-Joint Size: 1 1/8" Cap x 2 9/16" Span
(Measuring Guide - U-Joint)
Max Custom Length: Up to 56 Inches - Center to Center of U-Joint
(Measuring Guide - Driveshaft Length)
Driveshaft length required for build.



Quality Steel Driveshaft

All of our steel driveshafts are made from the finest driveline quality tubing which makes our driveshaft stronger and straighter from the start compared to regular cold rolled tubing. Steel is our most popular material choice due to its versatility, high strength and economical price. Driveshafts are checked in special computer software to ensure that shaft design, dimensions, and critical speeds will suit your application. Our shafts are high speed balanced on the latest driveline manufacturing equipment with balance weight allowances far less than OEM specs.

  • Quality Steel
  • Precision Balancing
  • Premium Spicer U-Joints
  • Variable Length Options
  • Lifetime Warranty on our Welds
  • Fast Turn Around Time
  •



    Sku: 3S3R

    Custom Driveshaft Length:


    Measururing Guide

    Measurement (A) - DRIVESHAFT LENGTH:
    Measure from end of rubber seal on the transmission to the flat face of the end yoke or flange on the differential.

    Measurement (B) - SPLINE EXTRUSION LENGTH:
    Measure from end of rubber seal to end the of the transmission output. If spline is recessed in rubber seal, measurement can be noted as ø.



    Ship Time:

    All driveshafts are custom built to your specification. Current lead time is 1 week from time of order.

    $354.31
    Maximum quantity available reached.

    Use this guide to measure driveshaft length for most cars, vans, 2WD trucks, and 4WD front and rear shafts.

    Measure Instructions: It is important to measure the driveshaft length when the vehicle’s axle is in the normal riding position. The axle must be supported on safety stands - not hanging down.



    Driveshaft Measuring Guide

     Transmission Output Type -
    SEAL

    Measurement (A) - DRIVESHAFT LENGTH:
    Measure from end of rubber seal on the transmission to the flat face of the end yoke or flange on the differential.

    Measurement (B) - SPLINE EXTRUSION LENGTH:
    Measure from end of rubber seal to end the of the transmission output. If spline is recessed in rubber seal, measurement can be noted as ø.

     Transmission Output Type -
    RUBBER BOOT EXTENSION

    Measurement (A) - DRIVESHAFT LENGTH:
    Measure from end of rubber boot extension on the transmission to the flat face of the end yoke or flange on the differential.

    Measurement (B) - SPLINE EXTRUSION LENGTH:
    Measure from end of rubber boot extension on the end of transmission output. If spline is recessed in rubber boot extension, enter ø.
