PTI 3R04-01 End Yoke

Vendor: PTI, Sku: 3R04-01

Product Description

Drive Shaft End Yoke / Pinion Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



U-Joint Series: 3R
U-Joint Cap Diameter (A): 1.125 Inch
Distance Between Machined Flats (B): 2.556 Inch
Style: Inside Snap Ring
End Yoke Length(C) :
- Center Line to End of Spline
3.575 Inch
Hub Diameter (D): 1.692 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.188 Inch
Number of Splines (F): 27
Bore Length (G): 1.475 Inch
Rear Axle Type:
GM 7.50 Inch - 10 Bolt

How to Measure a Driveshaft Slip Yoke.

Application:

GM
Rear Axle 7.5"


Vehicle Information

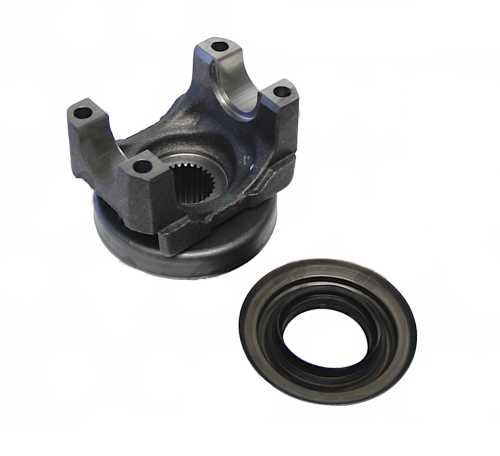

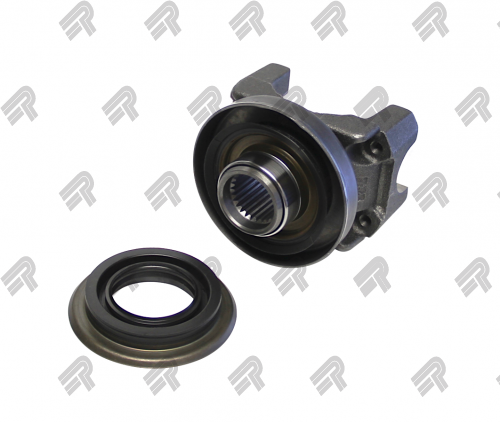

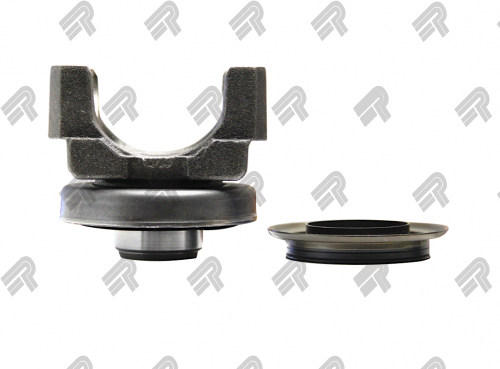

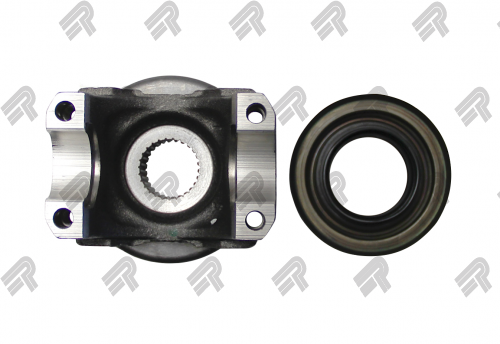

This 3R pinion yoke fits the GM 7.5" differential. It takes the Dana strap kit 2-70-48X and includes a new pinion seal (part # 40006689).

This pinion seal will be necessary on all applications before 2000. In 2000 GM started using a synthetic oil which required a triple lip seal with a larger ground hub diameter. The Seal OD of 2.660" fits all year models. It is the 1.692 ID that will only fit this yokes sleeve style hub.

This is the same as the GM part number 7827670.

Applications for the GM 7.5"

 Astro / Safari Van: 1982 - 1988 (Rear)
Camaro: 1982 - 2001 (Rear)
Caprice: 1978 - 2006 (Rear)
El Camino: 1977 - 1987 (Rear)
Firebird Trans Am: 1982 - 2001 (Rear)
Grand Prix: 1978 - 1987 (Rear)
Monte Carlo: 1978 - 1988 (Rear)
Monza: 1975 - 1979 (Rear)
S10 Blazer & Pickup: 1983 - 2002 (Rear)
Vega: 1971 - 1977 (Rear)




****


This part is compatible with:
SKU: Neapco 1-0025 Bearing Strap Kit
SKU: 2-70-48X Spicer Strap Kit
SKU: 40006689 Pinion Seal

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

Alternate Part Option:
AAM 40016324 End Yoke (Obsolete)
