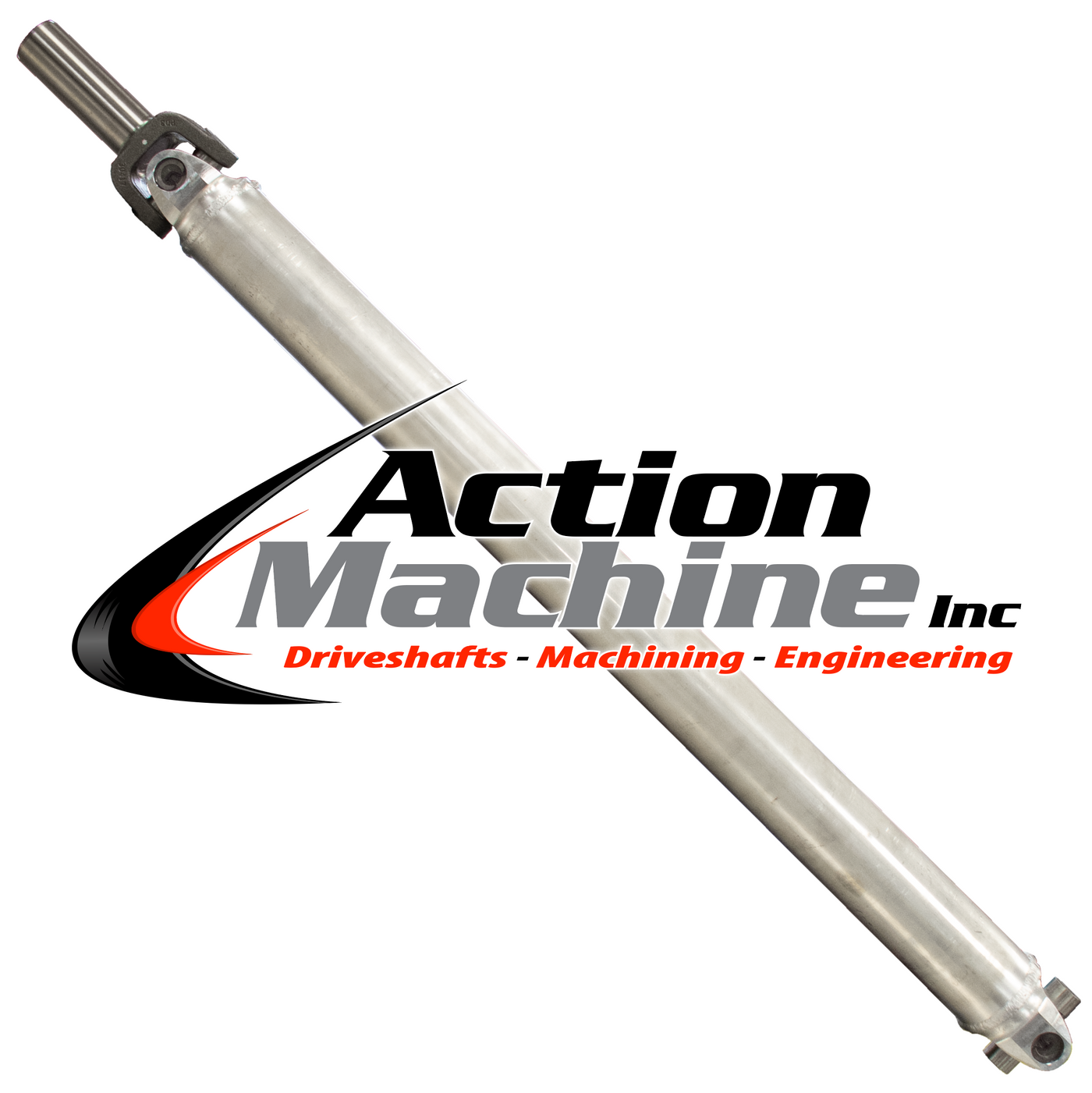

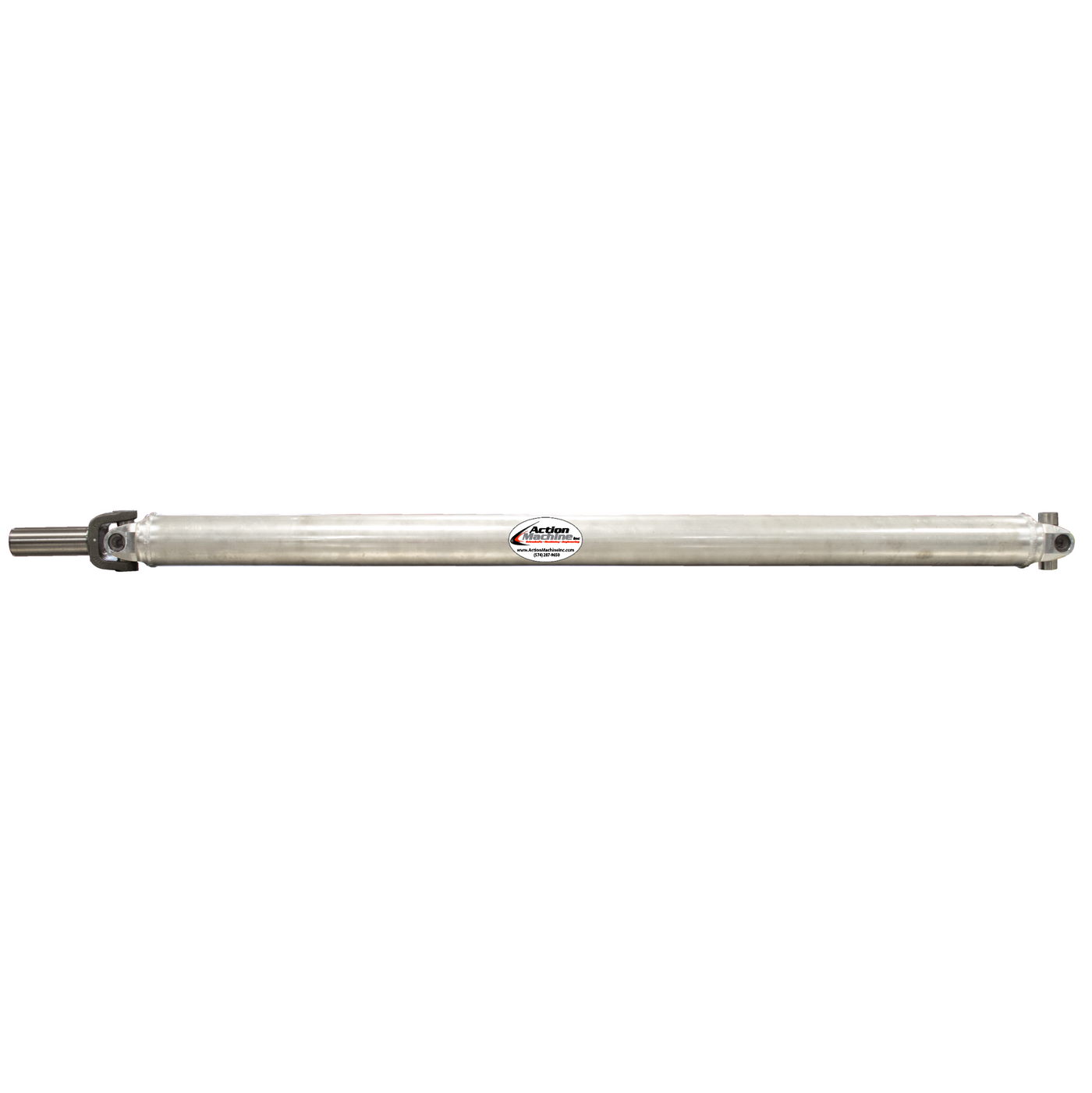

Custom Driveshaft & Slip Yoke - 3" Al. 1310, Ford 31 Spline, 1.688" Barrel OD (Sku: 3A1310-J)

Exceeding Industry Standards

Quality Aluminum Driveshafts


When you need a driveshaft that is lightweight, can handle higher torque loads and can give you a nice polish finish, then consider an Action Machine aluminum driveshaft. The Action Machine aluminum driveshaft is ideally suited for street rods, show cars, race cars and as OEM aluminum replacements. While other driveline shops may use .065" wall or .083" wall tubing for their aluminum driveshafts, our volume purchasing allows us to use .125" wall tube for the same price as the thinner tube. You have the best in aluminum performance no matter your application.


  • Seamless 6061-T6 Tubing
  • Precision Balanced
  • Premium Spicer U-Joints
  • Variable Length Options
  • Lifetime Weld Warranty
  • Turn Around 1 Week
  • Product Description

    Custom Driveshaft with Slip Yoke

    FREE GROUND SHIPPING INSIDE THE USA
    (This product does not qualify for international shipping)

    Driveshaft Specifications:

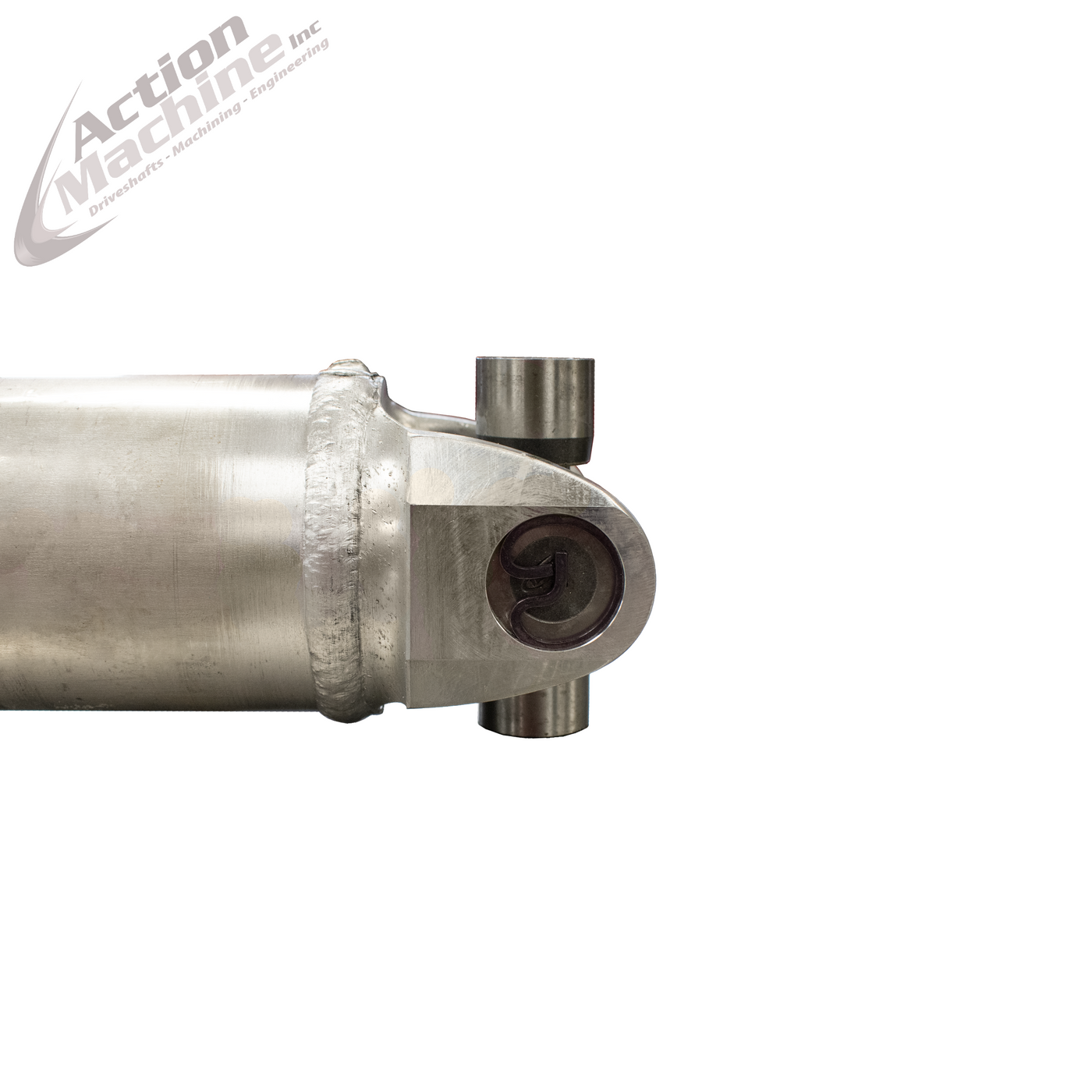

    Weld Yoke Material:
    Aluminum 6061-T6 Forged Yoke
    Tube Material: 0.125 Inch Wall 6061-T6 Seamless Aluminum
    Tube Outside Diameter: 3.0 Inch Outside Diameter
    (Measuring Guide - Tube OD)

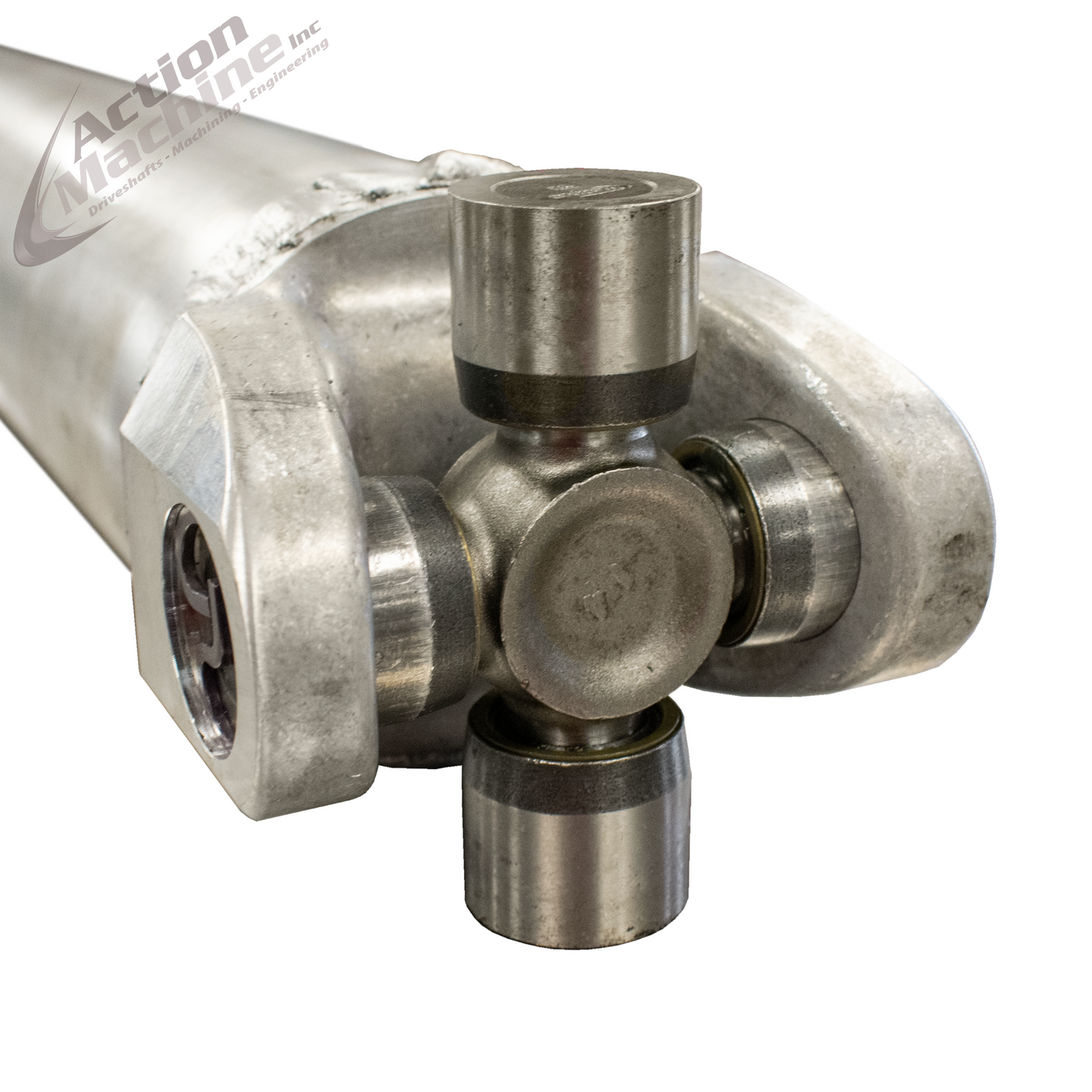

    U-Joint:
    Spicer/Dana 1310 Series
    Premium Non-Greasable
    U-Joint Size: 1 1/16" Cap x 3 7/32" Span
    (Measuring Guide - U-Joint)
    Max HP: 500
    Max Custom Length: Up to 56 inches - Center to Center of U-Joint
    (Measuring Guide - Driveshaft Length)
    Transmissions: J Ford / Lincoln / Mercury
    C6, E4OD, T45, T56, T56 Magnum, FMX, Toploader, TKO-500, TKO-600, ZF, Tremec

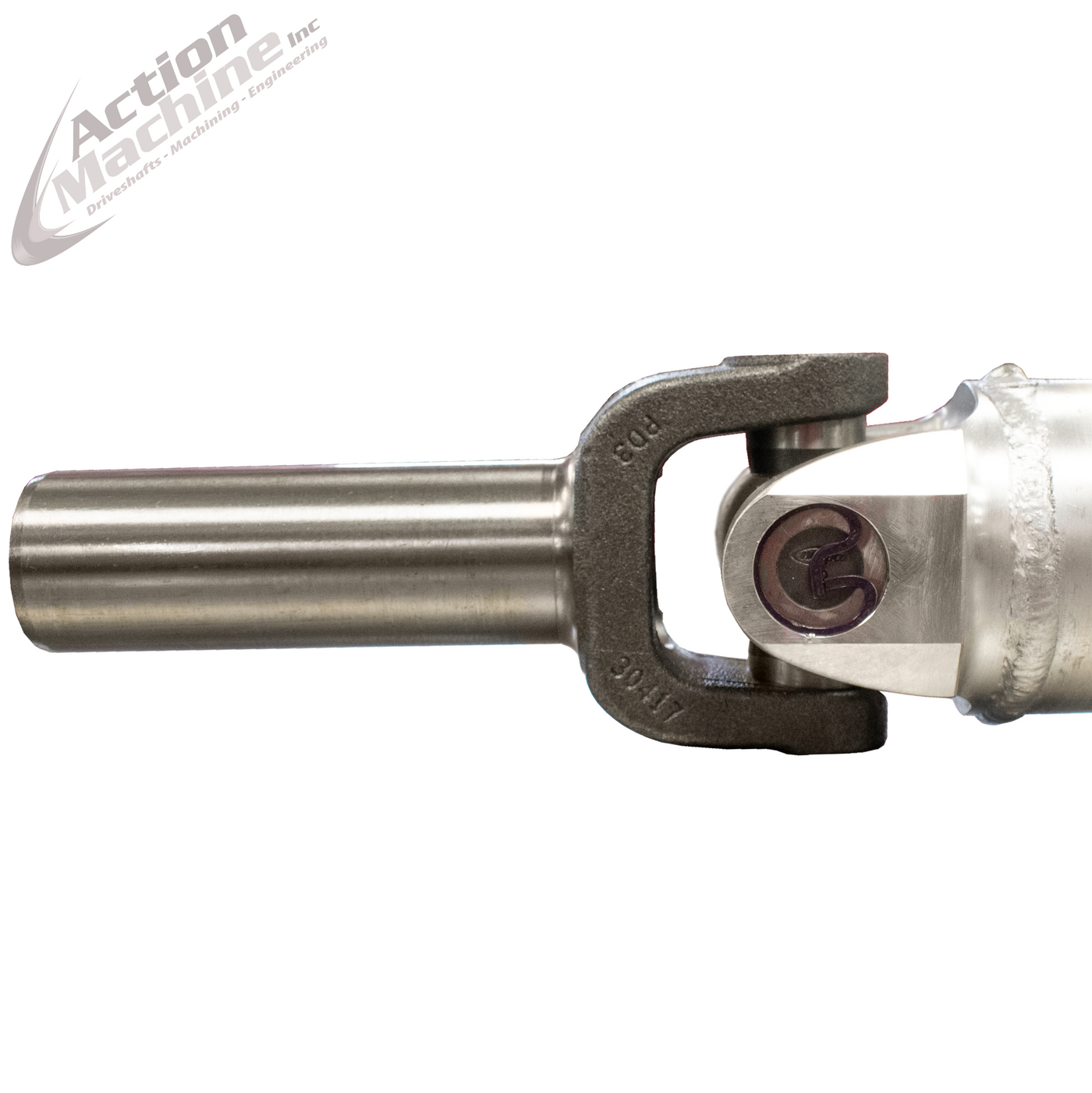

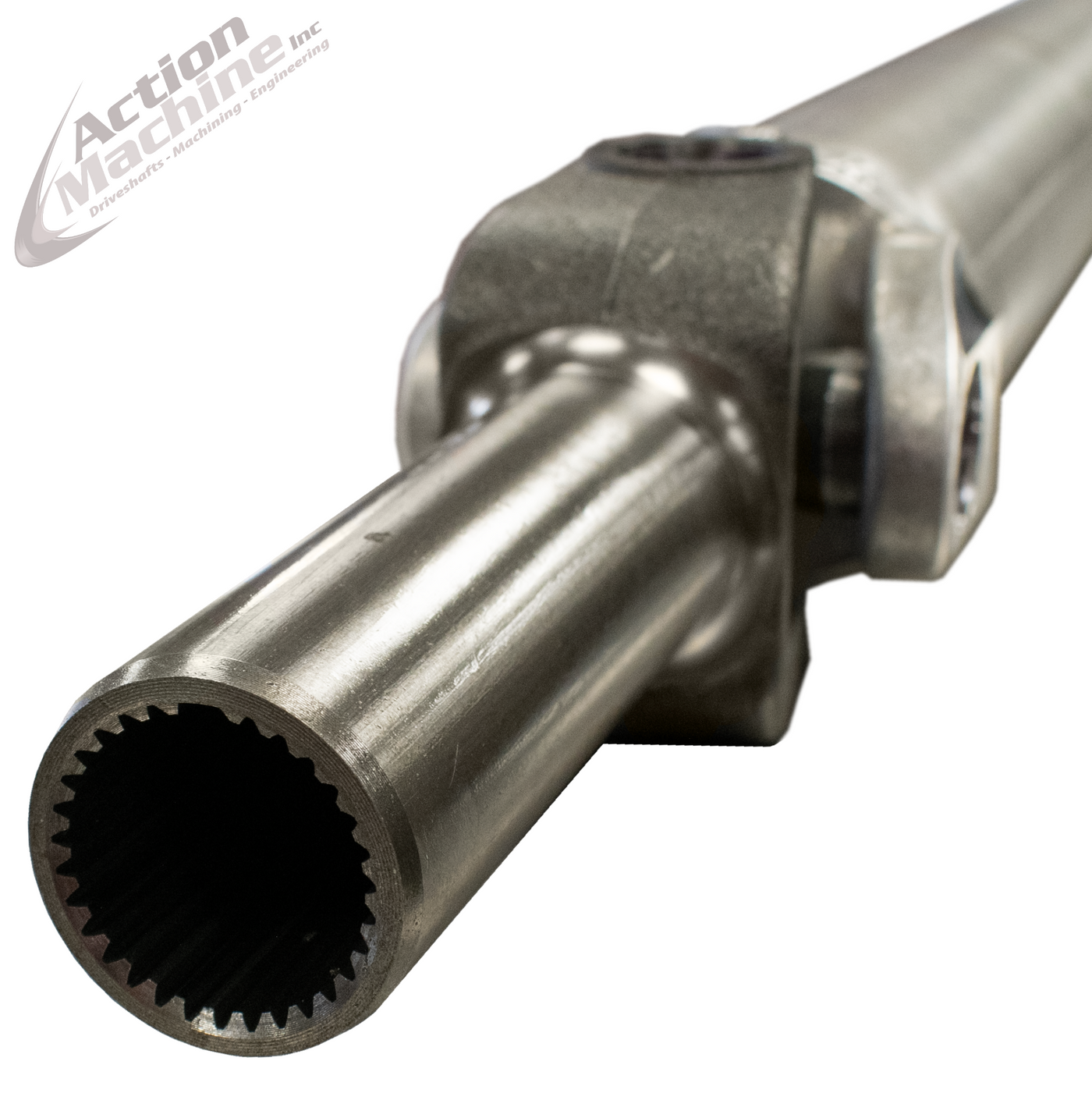

    Slip Yoke:
    Spline Count: 31
    Barrel Diameter: 1.688 Inch
    Slip Yoke Length: 7.000 Inch Outside Slip Yoke

    Required Driveshaft Measurements:


    Measururing Guide

    Driveshaft Length - Measurement (A):
    Measure from end of rubber seal or boot extension on the transmission to the flat face of the end yoke or flange on the differential.

    Spline Extrusion Length - Measurement (B):
    Measure from end of rubber seal or boot extension to end the of the transmission output. If spline is recessed in rubber seal, measurement can be noted as ø.



    Driveshaft Package Options:


    Reusing Your Parts

    If you choose to reuse your slip yoke (and flange) include a copy of your order receipt with your parts. Mail your package in a prepaid, insured and traceable method to this address:

    Action Machine Inc.
    1847 Prairie Avenue
    South Bend, IN 46613


    Why do we need your transmission yoke?

    We highly recommend that every driveshaft is balanced with the required slip yoke to ensure a smooth running driveshaft. Adding the slip yoke later could result in annoying and harmful vibrations.


    3A1310-J

    Ship Time:

    All driveshafts are custom built to your specification. Current lead time is 1 week from time of order.

    $573.05 $623.05
    Maximum quantity available reached.
    Add on Option

    Rear Flange Yoke:

    Does your Driveshaft need a flange yoke on the rear end? Add both your driveshaft and flange yoke to the cart and we will build you a complete driveshaft balanced and ready for intstall.
