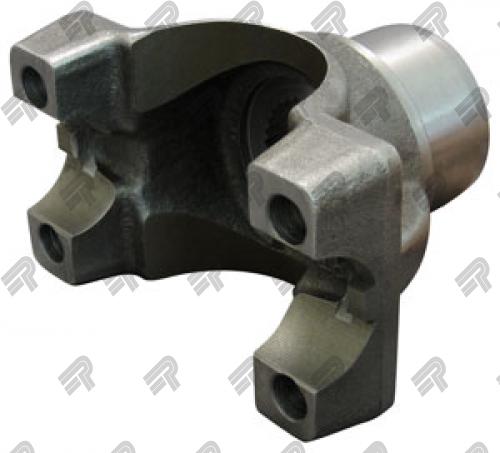

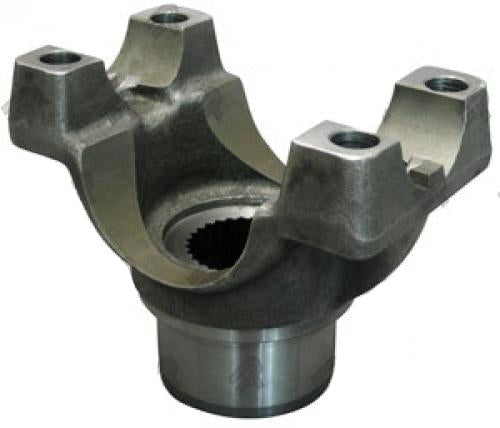

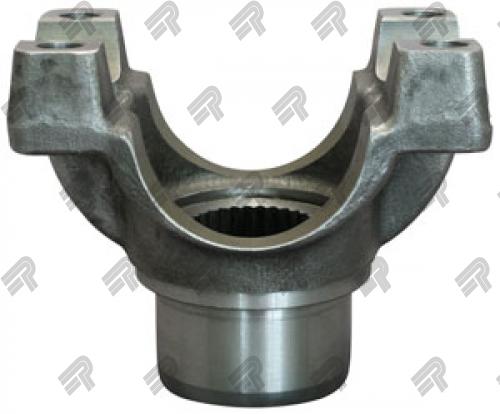

PTI 3504-60 End Yoke

Vendor: PTI, Sku: 3504-60

Product Description

3504-60 End Yoke
High Angle Yoke

U-bolt Kit - 3-94-18X

Sku: 3504-60
Vendor: PTI
$76.97
Maximum quantity available reached.

DETAILS

Manufacturer: PTI
Centerline of Joint to End of Spline (s): 3.375"
Manufacturer Part Number: 3504-60
U-Joint Series: 1350
Spline Count: 29
Spline OD: 1.276"
Bore Length: 1.500"
Cap OD (B): 1.188"
Yoke Span (A): 3.622"
Hub Dia.: 1.875"
Style: Outside Snap Ring
Rear Axle Type:
Dana 60/70
Joint Angle:
ø
Counterbore Depth:
ø

Bearing Strap Construction Diagram

.
