PTI 3503-281 Trans Slip Yoke

Vendor: PTI, Sku: 3503-281

Product Description
Transmission/Transfer Case Applications:

Transmission Applications: Fits 28 Spline and 1350 series u-joints. Fits Transmission Models , A4OD , AOD , C4 , T-10 , T-5 , Trimmer 3550

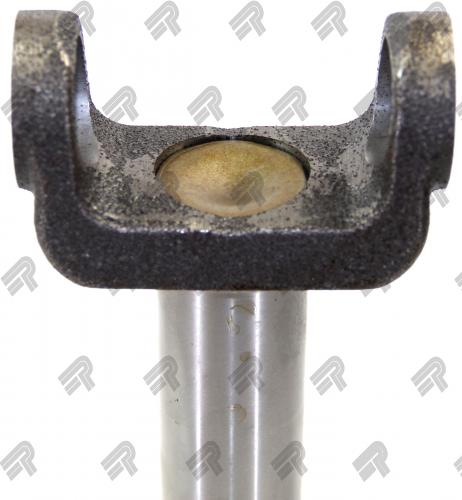

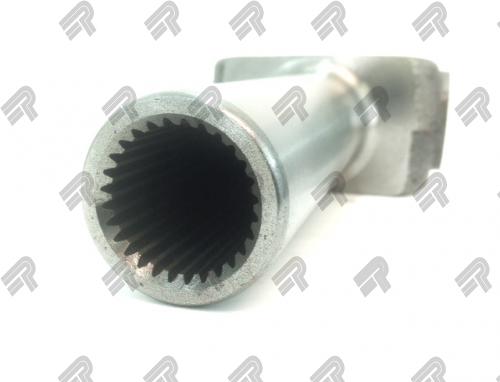

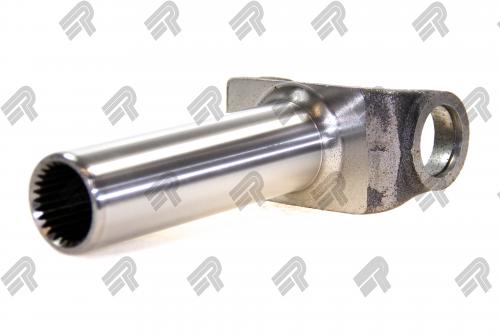

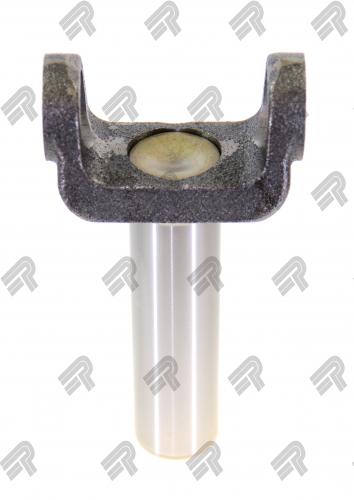

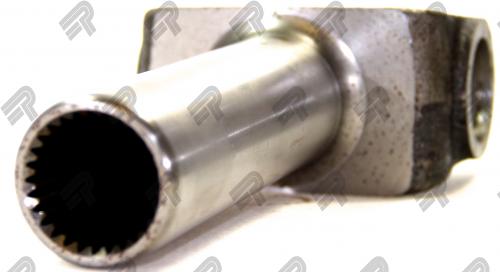

PTI Drive Shaft Transmission Slip Yoke
SKU: 3503-281

THIS C4 FORD TRANSMISSION YOKE IS A UPGRADE FROM THE STANDARD 1310 OR 1330 C4 TO THE 1350 SERIES. THIS PART IS MACHINED FROM A CASTING.

PowerTrain Inc Transmission Slip Yoke

Transmission Applications:

IT FITS T5'S, AOD'S, A4OD'S, TOPLOADER'S, AND TRIMMER 3550.



Series 1350
Outside Yoke Dimension
U-Joint Lock Up
3.625 IN
Bearing Cap Diameter 1.188 IN
Vehicle Make Ford
Center Line to End of Spline  6.625 IN
Center Line to Washer
0.875 IN
Hub Diameter 1.500 IN
Number of Spline* 27/28
Spline Type Full Spline
Style Outside Snap Ring
Material Steel

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

outside snap ring slip yokeSlip Yoke

0

Sku: 3503-281
Vendor: PTI
$65.00
Maximum quantity available reached.
.
