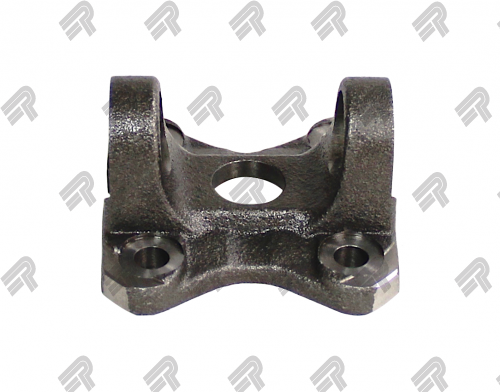

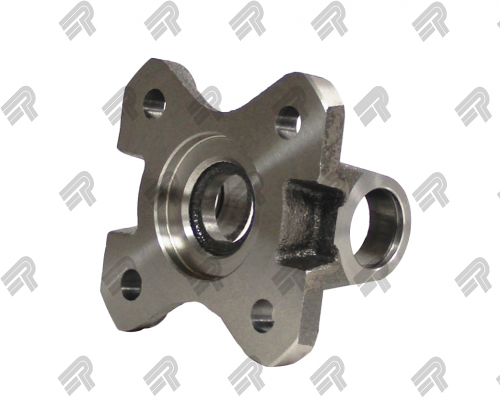

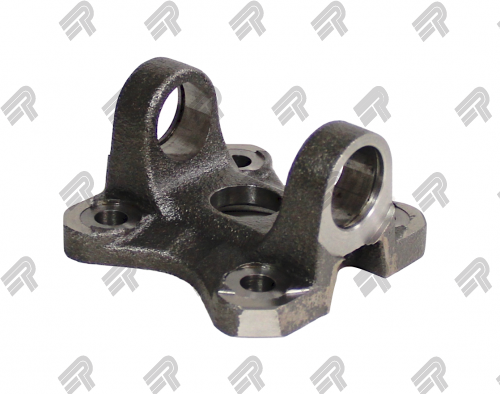

PTI 3502-216 Flange Yoke

Vendor: PTI, Sku: 3502-216

Product Description

Driveshaft Flange Yoke

Specifications

BOLT CIRCLE:
3.937"
DL SERIES:
1350
U-JOINT LOCK UP:
3.625”
BEARING CAP DIAMETER:
1.188”
FLANGE FACE TO CL:
1.625"
HOLE/THREAD SIZE:
0.489"
JOINT ANGLE:
0.00
NUMBER OF BOLT HOLES:
4
PILOT DIAMETER:
2.192" Female
VEHICLE Dodge
SWING DIAMETER 4.960"

VMRS: 024-002-016

Sku: 3502-216
Vendor: PTI
$47.68
Maximum quantity available reached.

DETAILS

U-Joint Series:
1330
U-Joint Cap Size (B): 1.063"
U-Joint Width (A): 3.625"
Snap Ring Type: Outside Snap Ring
Manufacturer: PTI
Pilot Diameter (G): 2.16"
Bolt Circle (E): 3.94"
Manufacturer Part Number: 3502-216
Flange or Swing Diameter (J): 0.49"
Bolt Hole (F): Drilled
Number of Bolt Holes: 4
Flange Face to Centerline U-Joint (H): 1.62"
OEM/Alternate Part Number:

“Outside

.
