PTI 3304-05 End Yoke

Vendor: PTI, Sku: 3304-05

Product Description

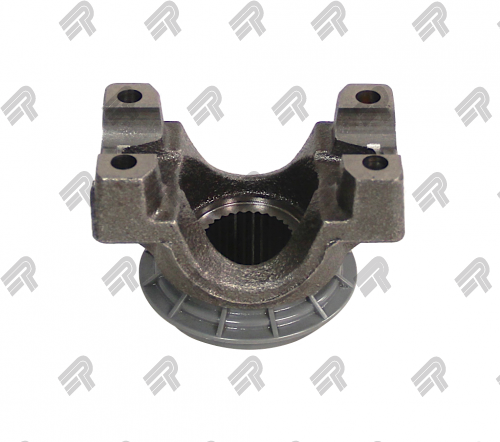

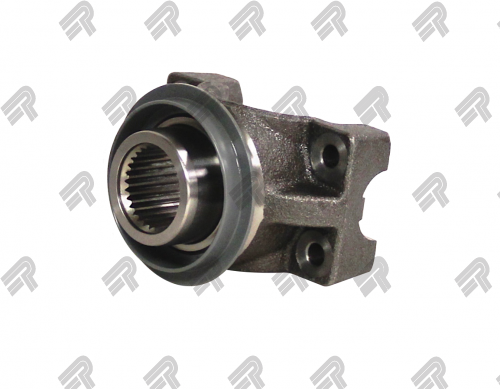

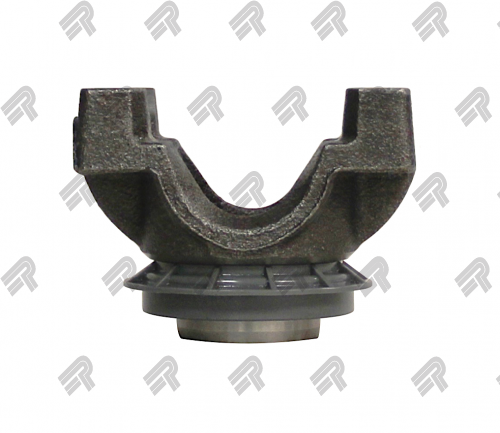

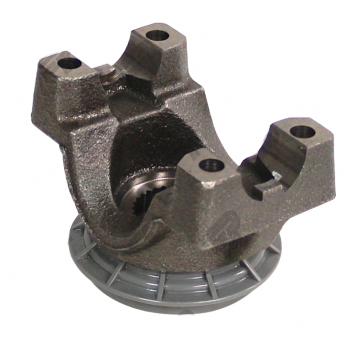

Drive Shaft End Yoke / Pinion Yoke

Notes Specs Applications

The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.

U-Joint Series:	1330
Style:	Outside Snap Ring
U-Joint Cap Diameter (A):	1.062 Inch
U-Joint Width (B):	3.625 Inch
End Yoke Length(C) : - Center Line to End of Spline	3.145 Inch
Hub Diameter (D):	1.812 Inch
Spline Diameter (E): - From Farthest Point to Farthest Point	1.312 Inch
Number of Splines (F):	30
Bore Length (G):	1.275 Inch
Differential Model	Ford 8.8

VMRS: 024001003

How to Measure a Driveshaft Slip Yoke.

THIS 1330 PINION YOKE FITS THE FORD 8.8" DIFFERENTIAL. IT TAKES THE DANA U-BOLT KIT 2-94-58X. THIS IS THE SAME AS THE FORD PART NUMBER E6TZ-4851-A.

Applications:

FORD 8.8" AVIATOR:	2003 - 2005	(REAR)
B3000:	1991 - 2002	(REAR)
B4000:	1991 - 2002	(REAR)
BRONCO:	1987 - 1996	(REAR)
CAPRI:	1986 - 1986	(REAR)
COUGAR:	1988 - 1996	(REAR)
CROWN VICTORIA:	1992 - 2006	(REAR)
E150:	1983 - 2006	(REAR)
E250:	1983 - 1998	(REAR)
EXPEDITION:	1997 - 2003	(FRONT)
EXPEDITION:	1997 - 2003	(REAR)
EXPLORER:	1990 - 2003	(REAR)
F150:	1959 - 1987	(REAR)
F150:	1983 - 2006	(REAR)
F150:	1997 - 2006	(FRONT)
F250:	1997 - 1999	(FRONT)
MARK LT:	2006 - 2006	(FRONT)
MARK VI:	1980 - 1983	(REAR)
MUSTANG:	1986 - 2005	(REAR)
NAVIGATOR:	1998 - 2005	(FRONT)
NAVIGATOR:	1998 - 2006	(REAR)
RANGER:	1990 - 2005	(REAR)
THUNDERBIRD:	1987 - 1995	(REAR)
TOWN CAR:	1981 - 2005	(REAR)

****

This part is compatible with:
Spicer 2-94-58X U-Bolt Kit

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help:
CONTACT US | CHAT | (574) 287-9650

Sku: 3304-05

Vendor: PTI

$78.19
