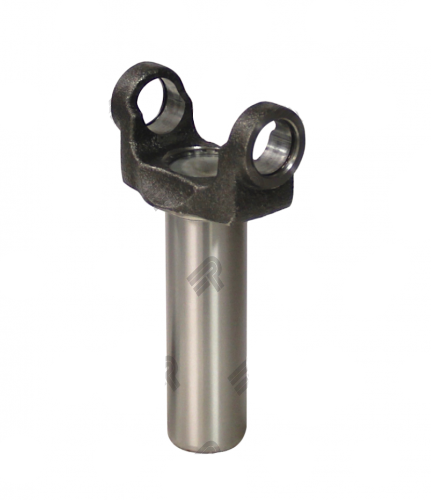

PTI 3303-282 Trans Slip Yoke

Vendor: PTI, Sku: 3303-282

Product Description

PTI Drive Shaft Transmission Slip Yoke



PTI Transmission Slip Yoke
Transmission and Transfer Case Applications:

Fits various 28 spline Ford, Lincoln, Mercury transmission cases including AOD-E, 4R70, 4R70W, 4R75 and some Transfer cases.



Series: 1330
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.062 Inch
U-Joint Width (B): 3.625 Inch
Slip Yoke Length (C):
(Center Line to End of Spline)
6.630 Inch
Barrel Diameter (D): 1.600  Inch
Spline Diameter (E): 1.220 Inch
Number of Spline (F): 28 (27 with blind spot - see note below*)
Spline Counter Bore: No
Material: Steel
Vehicle Make: Ford, Mustang 1964-2004

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Driveshaft Slip Yoke Diagram Outside Snap Ring Style

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

Driveshaft Slip Yoke Diagram Spline Count
