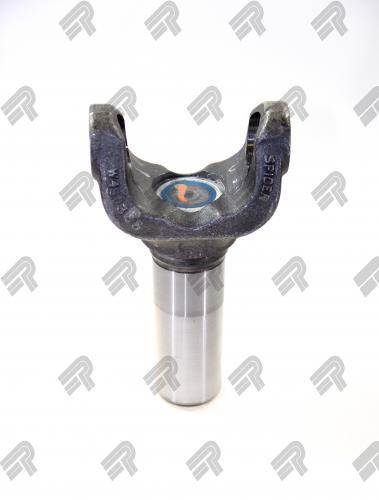

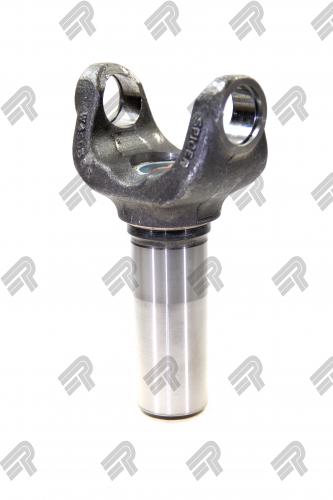

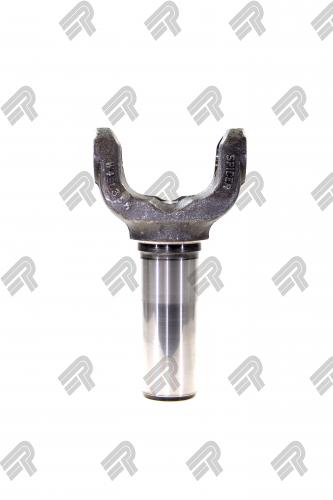

PTI 3303-232 Trans Slip Yoke

Vendor: PTI, Sku: 3303-232

Product Description

Spicer/Dana Drive Shaft Transmission Slip Yoke

  • Product Specs
  • Description
  • Diagrams
Transmission and Transfer Case Applications:

Toyota



Series: 1330
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.062 Inch
U-Joint Width (B): 3.625 Inch
Slip Yoke Length (C):
(Center Line to End of Spline)
6.319 Inch
Barrel Diameter (D): 1.574 Inch
Spline Diameter (E): 1.201 Inch
Number of Spline*: 23
Spline Counter Bore: No
Material: Steel
Vehicle Make: Toyota

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Driveshaft Slip Yoke Diagram Outside Snap Ring Style

This is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.

Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.

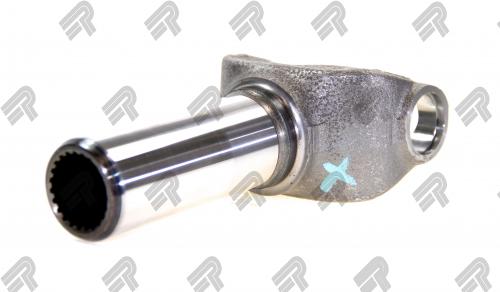

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

Driveshaft Slip Yoke Diagram Spline Count

Alterante Parts Option:
Spicer 2-3-02274X Trans Slip Yoke

$106.64
