PTI 3104-321CV End Yoke

Vendor: PTI, Sku: 3104-321CV

Product Description

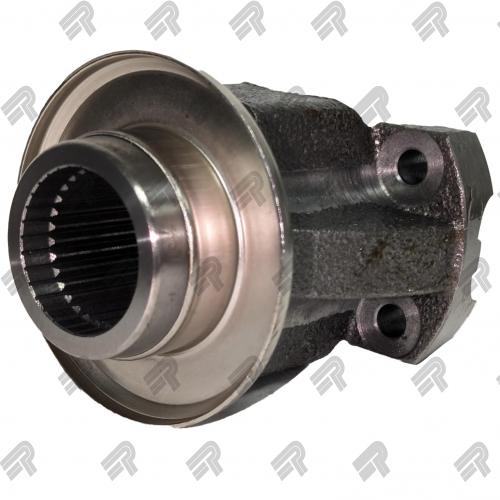

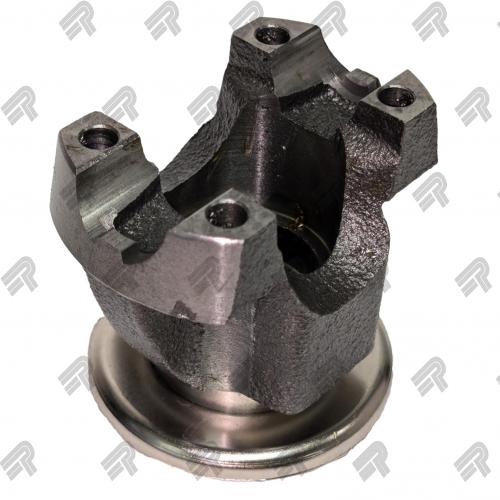

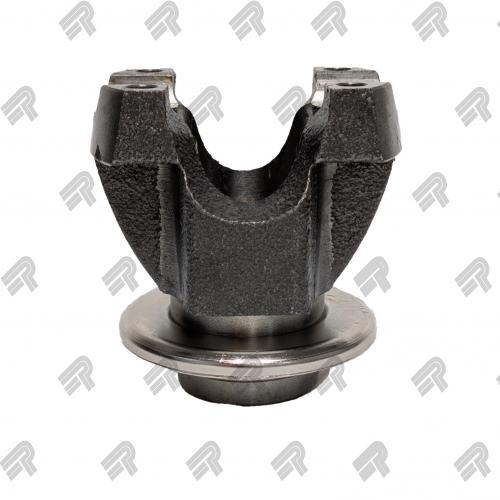

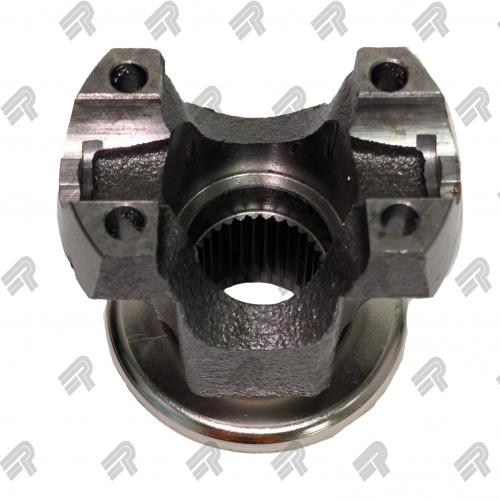

This 1310 CV end yoke replaces the front or rear transfer case output flanges in the 2007+ Jeep JK. It allows you to build a 1310 Spicer style CV at the transfer case instead of the factory GKN style.

This part can be combined with the 3102-392 flange at the front or rear differential to build a new Spicer 1310 shaft. This flange fits directly into the factory GKN differential companion flanges.

  • Notes: CV conversion yoke for 07 and up Jeep JK on front or rear output / Splines counterbored top and bottom / Includes hub sleeve

Drive Shaft End Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.


End/Pinion Yoke Specifications


U-Joint Series: 1410
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 4.188 Inch
End Yoke Length(C) :
- Center Line to End of Spline
3.875 Inch
Hub Diameter (D): 1.943 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.401 Inch
Number of Splines (F): 32
Bore Length (G): 2.000 Inch
Rear Axle Type:
Jeep
VMRS: 024001003



How to Measure a Driveshaft Slip Yoke.


Applications
Jeep JK Transfer Case



****


This part is compatible with:
AMI 91271A609 Bolt Kit

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help:  CHAT | EMAIL | (574)287-9650

Sku: 3104-321CV
Vendor: PTI
$64.50
Maximum quantity available reached.

DETAILS

Manufacturer: PTI
Manufacturer Part Number: 3104-321CV
U-Joint Series: , 1410
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 4.188 Inch
End Yoke Length(C) :
- Center Line to End of Spline
3.875 Inch
Hub Diameter (D): 1.943 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.401 Inch
Number of Splines (F): 32
Bore Length (G): 2.000 Inch
Rear Axle Type:
Jeep ,

.
