PTI 3104-242 End Yoke

Vendor: PTI, Sku: 3104-242

Product Description

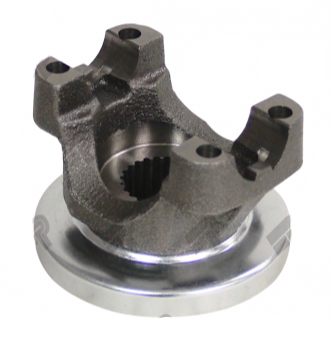

Drive Shaft End Yoke / Pinion Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



End/Pinion Yoke Specifications -  Conversion End Yoke


U-Joint Series: 1310
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.063"
U-Joint Width (B): 3.219"
End Yoke Length(C) :
- Center Line to End of Spline
3.000”
Hub Diameter (D): 1.876”
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.250”
Number of Splines (F): 24
Bore Length (G): 1.500”
VMRS: 024001003



How to Measure a Driveshaft Slip Yoke.


Applications:  Jeep JK Rear Pinion Yoke







****


This part is compatible with:
Spicer 2-94-28X U-Bolt Kit



For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide

If you have any questions we are here to help:  CHAT | EMAIL | (574)287-9650

Sku: 3104-242
Vendor: PTI
$51.02
Maximum quantity available reached.

DETAILS

Manufacturer: PTI
Manufacturer Part Number: 3104-242
U-Joint Series: , 1310
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.063"
U-Joint Width (B): 3.219"
End Yoke Length(C) :
- Center Line to End of Spline
3.000 Inch
Hub Diameter (D): 1.876 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.250 Inch
Number of Splines (F): 24
Bore Length (G): 1.500 Inch
Rear Axle Type:

.
