PTI 3102-15 Flange Yoke

Vendor: PTI, Sku: 3102-15

Product Description

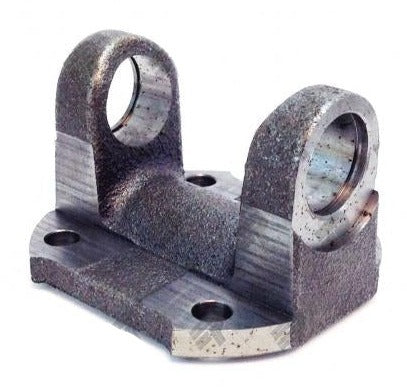

Driveshaft Flange Yoke

Specifications

Bolt Circle:
3.340 Inch
Series:
1310
U-Joint Lock Up:
3.219 Inch
Bearing Cap Diameter:
1.063 Inch
Flange Face to Center Line:
1.750 Inch
Hole/Thread Size:
0.410 Inch
Joint Angle:
15 Degree
Number of Bolt Holes:
4
Pilot Diameter:
1.811 Inch Male
Swing Diameter:
4.130 Inch

VMRS: 024-002-016


Alternate Part Option:
Neapco N2-2-799-1 Flange Yoke
Spicer 2-2-1679 Flange Yoke
Sku: 3102-15
Vendor: PTI
$57.74
Maximum quantity available reached.

DETAILS

U-Joint Series:
1310
U-Joint Cap Size (B): 1.063"
U-Joint Width (A): 3.219"
Snap Ring Type: Outside Snap Ring
Manufacturer: PTI
Pilot Diameter (G): 1.810" M
Bolt Circle (E): 3.340"
Manufacturer Part Number: 3102-15
Flange or Swing Diameter (J):
Bolt Hole (F):
Number of Bolt Holes: 4
OEM/Alternate Part Number:

“Outside

.
