AAM 26051650 Trans Slip Yoke

Vendor: AAM, Sku: 26051650

Product Description

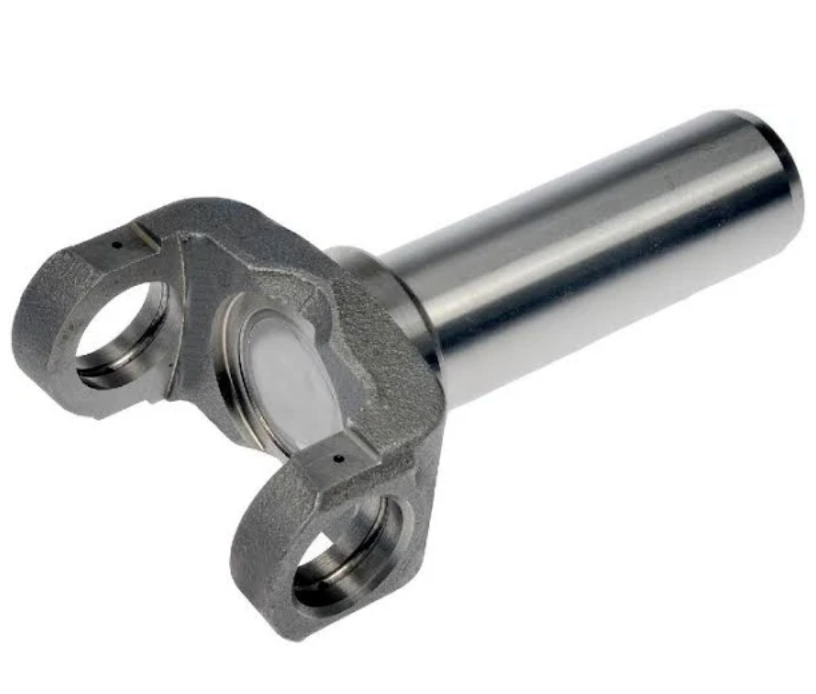

Drive Shaft Transmission Slip Yoke

Driveshaft transmission slip yoke
Transmission & Transfer Case Applications:
Fits various 27 spline, Jeep, General Motors (GM) transmission output shafts including: Turbo 350, TH-350, T56, T375, T-5, T-10, Saginaw, Powerglide, M21, M20, 700R4, 4L65E, 4L60E, 200-R4 and some transfer case applications.



This slip yoke does not have a damper.

Series: 3R / 1344
Style: Inside Snap Ring
U-Joint Cap Diameter (A): 1.125 Inch
U-Joint Width (B): 2.563 Inch
Slip Yoke Length (C):
(Center Line to End of Spline)
6.125 Inch (155.60 mm)
Barrel Diameter (D): 1.500 Inch (38.16 mm)
Spline Diameter (E): 1.176 Inch (29.8 mm)
Number of Spline (F)*: 27 (26 with blind spot - see note below*)
Spline Counter Bore: no
Vehicle Make: GM

VMRS: 024002038

Slip Yoke

Transmission Applications: Fits various 30 spline output shafts for Dodge transmissions including:  45RFE, 46RE, 46RH, 47RE, 47RH, 545RFE, 65RFE, 727, A518, A833, Doug Nash, SRT10 &  TorqueFlite 727.


Alternate Parts:
PTI 3R03-276 Trans Slip Yoke

$110.00
