GM 27 Spline 3R Series (Discontinued)

Vendor: AAM, Sku: 26042556

Product Description

Transmission Applications: Fits all GM transmissions with 27 splines output shafts. Fits Transmission Applications: , 200-R4 , 4L60-E , 4L65 , 700-R4 , M20 , M21 , Powerglide , Saginaw , T-10 , T-5 , T375 , T56 , Turbo 350

AAM Drive Shaft Transmission Slip Yoke
SKU: 26042556

Replacement part Powertrain 3R03-700

Slip Yoke for GM vehicles with 3R Series U-Joints, 27 spline and matching measurement specs.

Fits 1350 Series applications.  Non-greasable, outside snap ring u-joint.  Same U-joint as the old Spicer part number 5-799X.



AAM driveshaft components are designed, tested and manufactured to maximize performance and durability. All driveshaft components meet the OEM specifications because they are the authentic OEM products. The same products AAM use to build driveshafts used by vehicle manufacturers around the world Designed utilizing the latest technology, this product by American Axle features premium quality and will perform better than advertised. Perfect for your vehicle and lifestyle, it is manufactured to meet or exceed stringent industry standards.
 Transmission Applications:
Fits all GM transmissions with 27 splines output shafts. GM transmissions include Turbo 350 (TH-350), Powerglide, T375, 700R4, 200R, 4L60, and 4L65. Also fits manual transmissions with 27 spline outputs like Borg Warner T-5, T-10, T-56 and Muncie M20 and M21, as well as Saginaw.

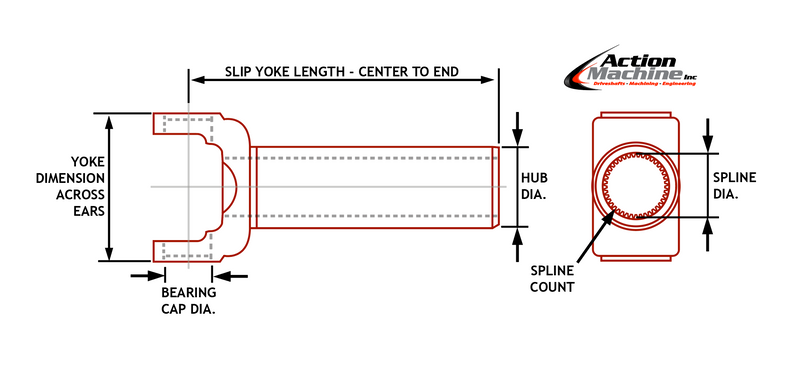

Series

1344

Outside Yoke Dimension
Snap Ring Lock Up

2.563 IN / 65.100 MM U-Joint

Vehicle Make

GM

Bearing Cap Diameter

1.125 IN / 28.575 MM

To End Of Spline

6.760 IN / 171.70 MM
- Has 12mm Spline Counterbore

Hub Diameter

1.502 IN / 38.16 MM

Spline Out Side Diameter
1.173 IN / 29.8 MM
Number Of Splines
26 Based on 27
Style

Outside Snap Ring

Notes
Without Damper, Vented


VMRS: 024002038

Outside slip yoke

Outside Slip YokeSlip Yoke

Transmission Applications: Fits various 30 spline output shafts for Dodge transmissions including:  45RFE, 46RE, 46RH, 47RE, 47RH, 545RFE, 65RFE, 727, A518, A833, Doug Nash, SRT10 &  TorqueFlite 727.

Sku: 26042556
Vendor: AAM
$37.01
Maximum quantity available reached.
.
