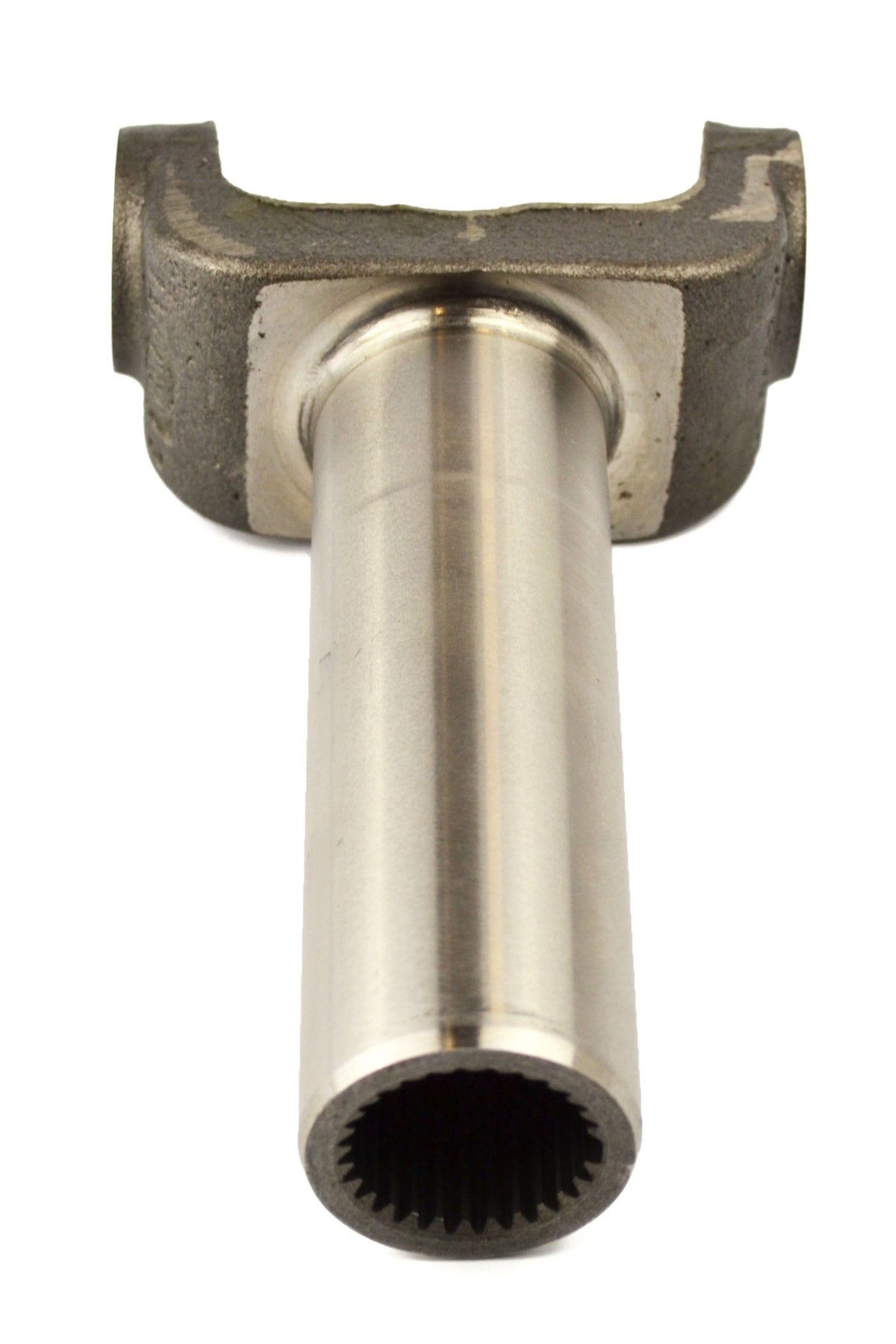

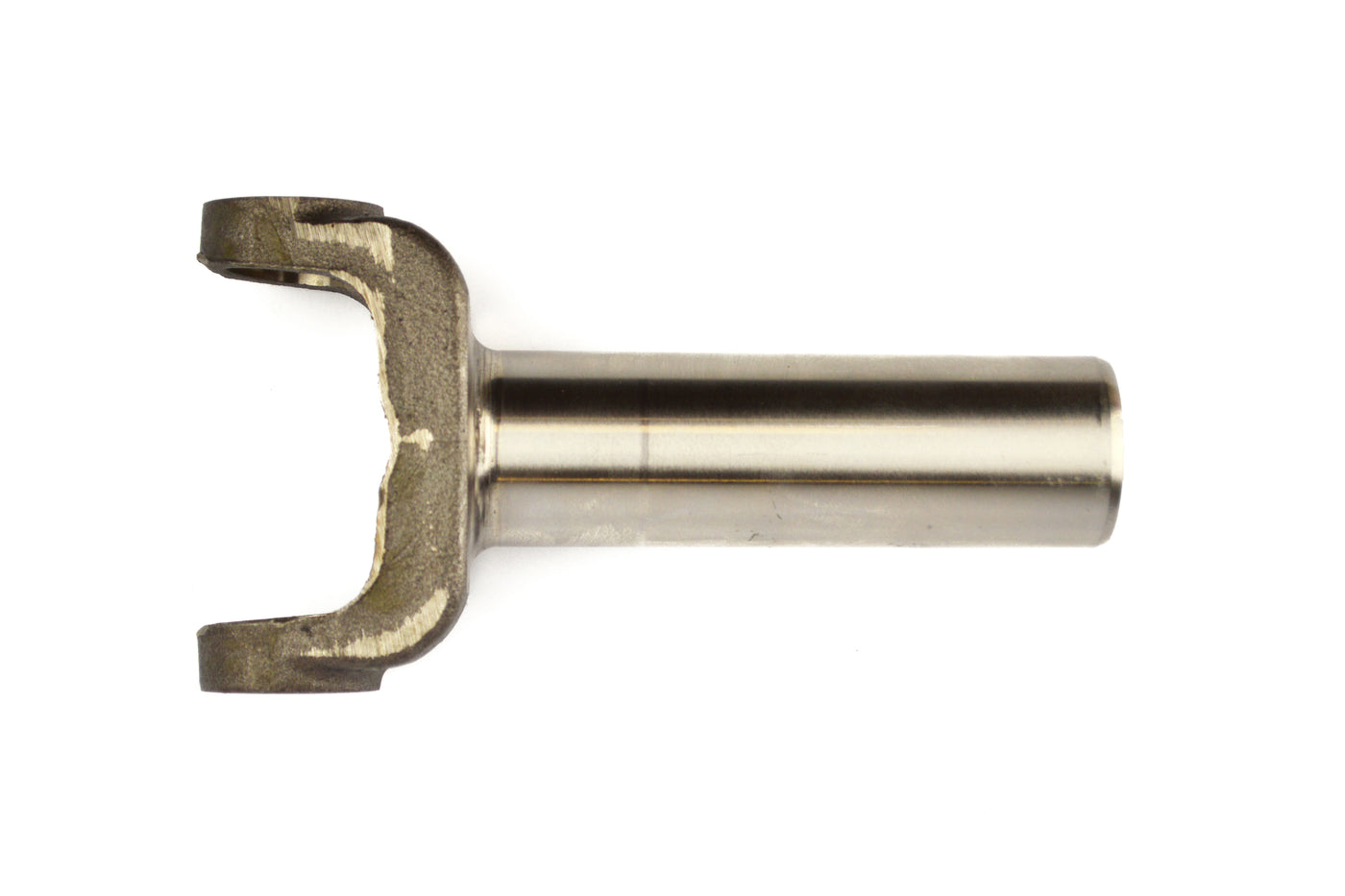

Spicer 2-3-14061X Trans Slip Yoke

Vendor: Spicer/Dana, Sku: 2-3-14061X

Product Description

Spicer/Dana Drive Shaft Transmission Slip Yoke

This is a genuine Spicer built driveshaft component. Spicer parts provide the enhanced performance and extended durability that you expect from the leader in the drivetrain industry.

Dana design, engineering, testing and manufacturing processes all work in conjunction with one another to ensure unparalleled performance.

Transmission and Transfer Case Applications:

Fits various 28 spline Ford, Lincoln, Mercury transmission cases including AOD-E, 4R70, 4R70W, 4R75 and some Transfer cases.



Series: 1330
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.062 Inch
U-Joint Width (B): 3.625  Inch
Slip Yoke Length (C):
(Center Line to End of Spline)
6.630 Inch
Barrel Diameter (D): 1.597 Inch
Spline Diameter (E): 1.220 Inch
Number of Spline (F): 28 (27 with blind spot - see note below*)
Spline Counter Bore: No
Material: Steel
Vehicle Make: Ford, Mustang 1964-2004

VMRS: 024002038

 * The transmission slip yoke may have one or two missing splines inside the barrel known as blind spots. Each blind spot counts as one spline in the total spline count. The blind spots do not affect the fit of the yoke on your output shaft.

Driveshaft Slip Yoke Diagram Outside Snap Ring Style

Some slip yokes have missing splines. To verify spline count, always count the splines on the transmission output shaft. A slip yoke counterbore is a short lead without spline in the end of the yoke.

Driveshaft Slip Yoke Diagram Spline Count
