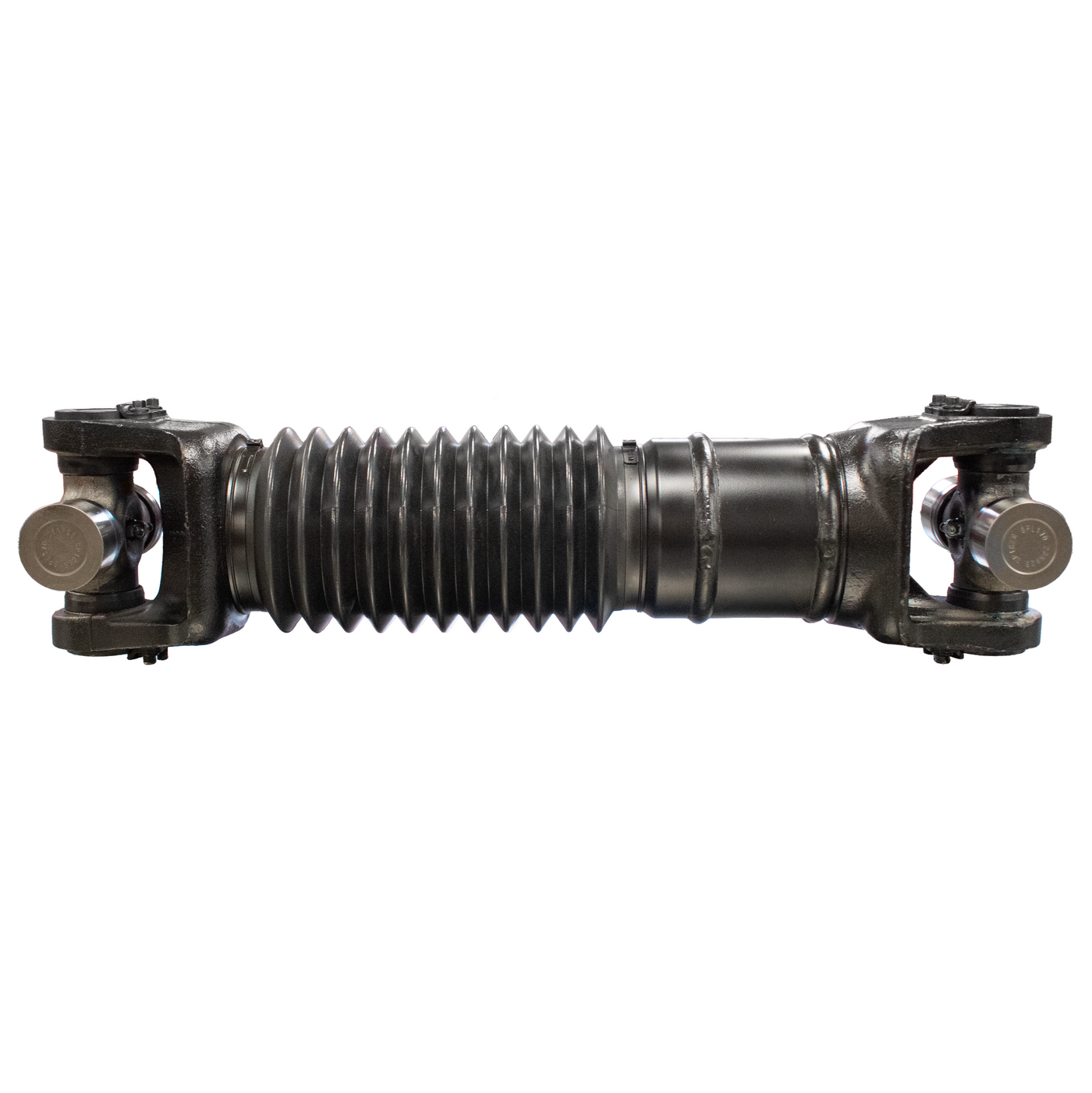

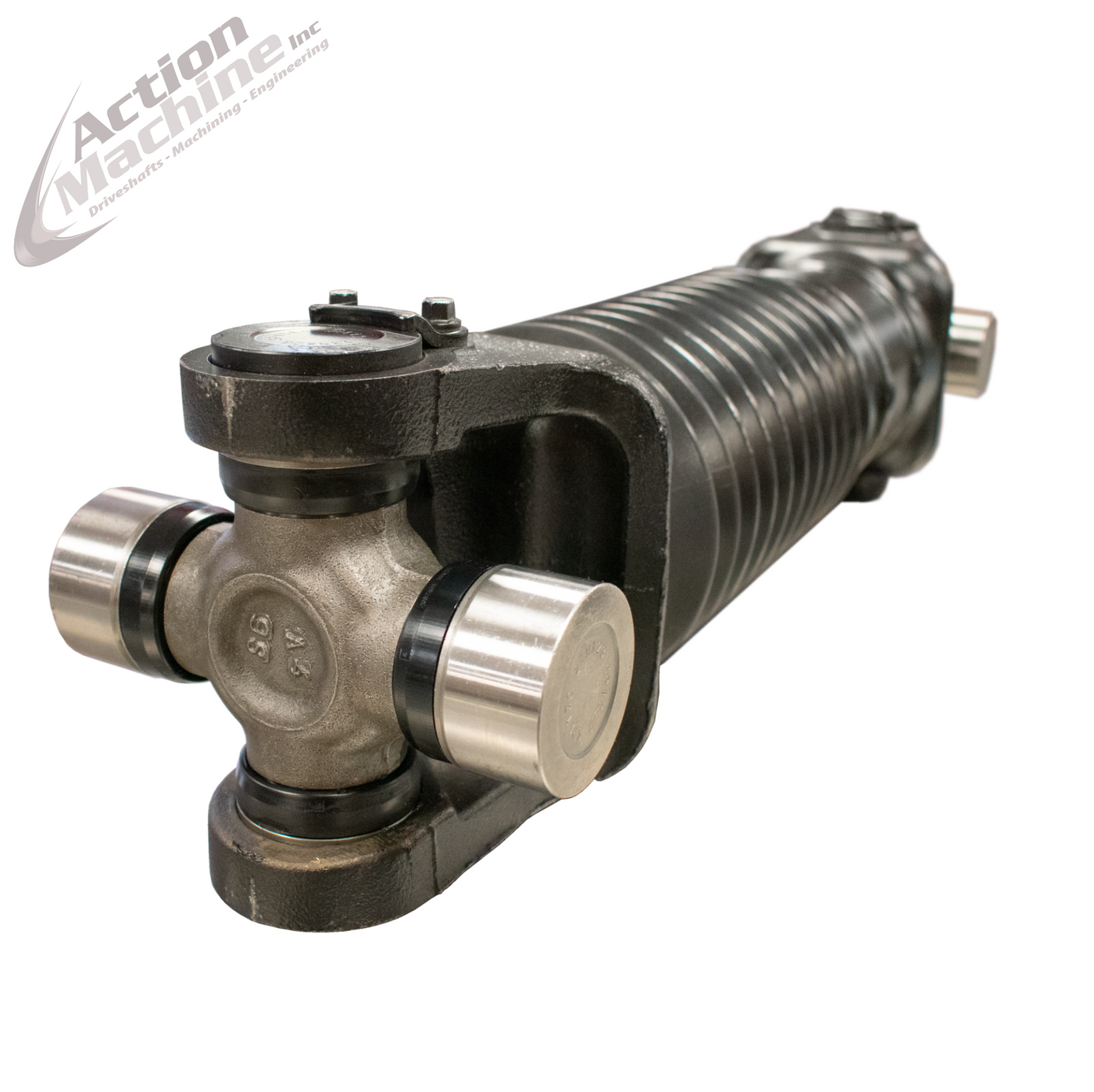

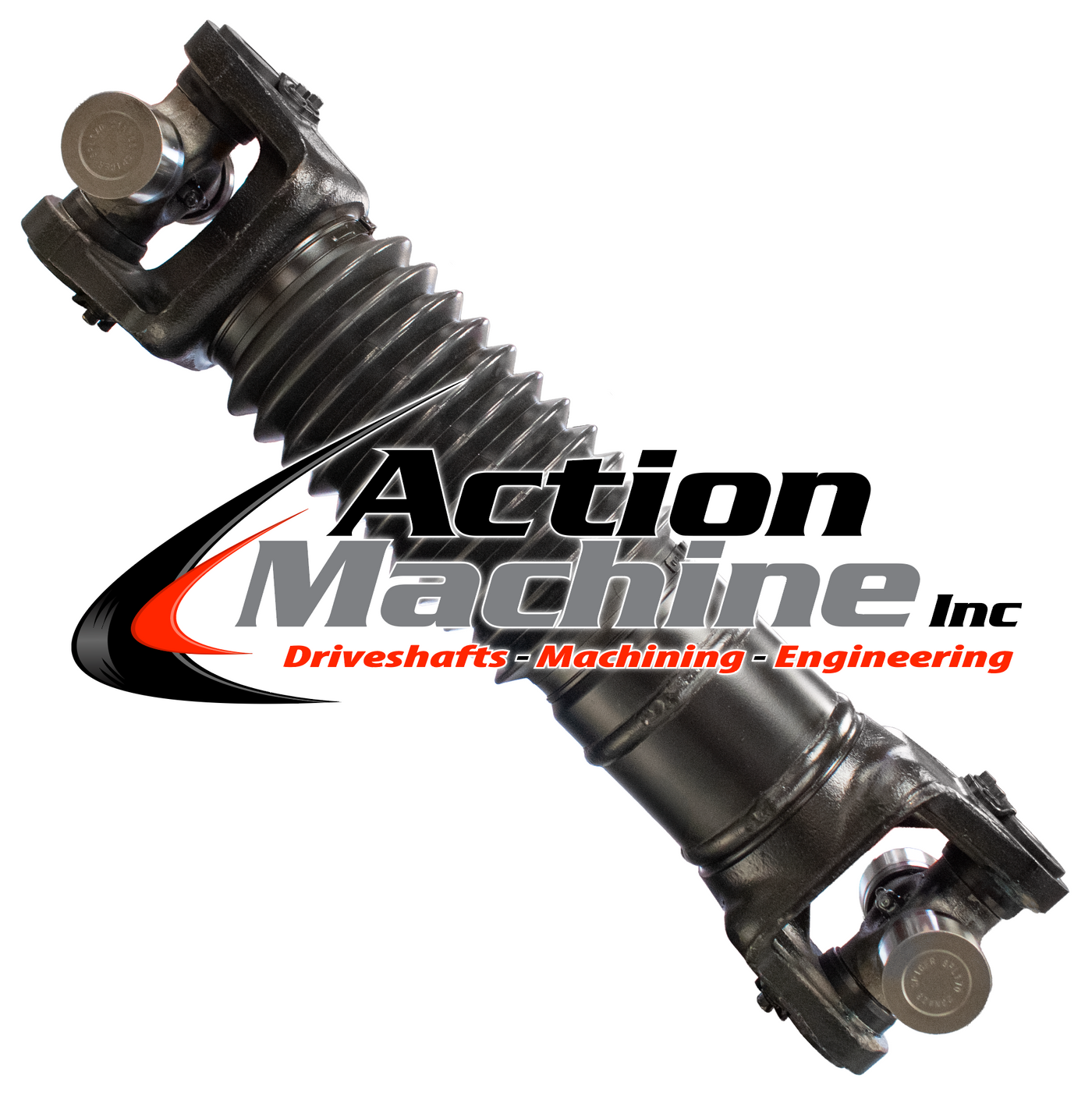

FAST-SHAFT - Inter-Axle Driveshaft - SPL170 Series, 24.75 Inch

Vendor: Action Machine Inc., Sku: 170IA55010C-100M_AMI

Product Description

FAST-SHAFT
Inter-Axle Driveshafts for Class 8 Semi Trucks

FREE Ground Shipping in the USA
(Not eligible for international shipping)

Keep your fleet moving with Action Machine’s Fast-Shaft Inter-axle Driveshafts. Built with premium components, each shaft is assembled, balanced, and ready to install. With a 1–3 business day ship time, you’ll be back on the road faster, no costly downtime. Proudly manufactured in the USA.

Specifications:

Driveshaft Style:	Inter-axle Driveshaft- 4.59 Inch OD Steel
Weld Yoke Material:	Forged Steel
Tube Material:	0.180 Inch Wall DOM Seamless
Tube Outside Diameter:	4.59 Inch OD (Measuring Guide - Tube OD)
U-Joints:	Spicer/Dana SPL170 Series Greasable U-Joint Size: 2.165 Inch Cap X 6.456 Inch Span (Measuring Guide - U-Joint)
U-Joint Style:	SPL170 / Spring Tab
Average Driveshaft Length:	24.75 Inches
Slip & Spline Travel:	+/- 2.75 Inch
Collapsed Length:	22.00 Inches (558.80 mm)
Max Extended Length:	27.50 Inches (698.50 mm)
Hardware:	8 Bolts (5007417)
Phasing:	Driveshaft is in phase (yoke ears in-line)

Short Couple Driveshaft – SPL170 Series

This driveshaft is engineered with SPL170 series full round U-joints at both the front and rear ends, ensuring strength and durability in heavy-duty applications.

Slip & Spline Travel: 5.5 Inches
Collapsed Length: 22.00 Inches
Extended Length: 27.50 Inches

Every driveshaft ships fully assembled and dynamically balanced for smooth operation and long service life. Installation is straightforward, simply bolt in the SPL170 series U-joints, and you’re ready to roll.

If you have any questions we are here to help:
CHAT | PHONE (574)287-9650 | CONTACT US

FREE GROUND SHIPPING INSIDE THE USA
(This product does not qualify for international shipping)

Alternate Part Number:
Spicer 170IA55010C-100M Inter-axle Driveshaft
AMI 4SSPL170-Slip-Interaxle-25.75 Inter-axle Driveshaft
417LTP0550

Sku: 170IA55010C-100M_AMI

Vendor: Action Machine Inc.

Ship Time:

All driveshafts are custom built to your specification. Current lead time is 1-3 business days from time of order.

$1,184.03
