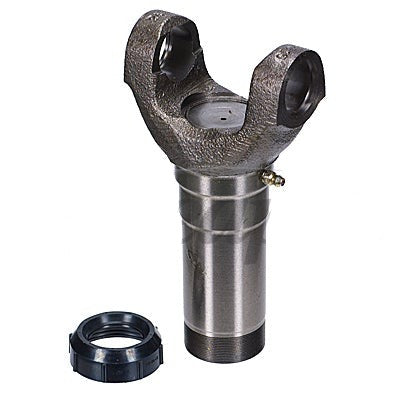

Neapco N3-3-1561KX Slip Yoke

Vendor: Neapco, Sku: N3-3-1561KX

Product Description

Mid Drive Shaft Slip Yoke

Mid shaft slip yoke designed to be used in conjunction with a spline shaft to allow axle movement in the driveshaft.

Specifications:

Series: 1350
U-Joint Cap Diameter (A): 1.188 Inch
U-Joint Width (B): 3.625 Inch
Center Line to End of Spline (C): 6.72 Inch
Center Line to Face of Washer: 1.22 Inch
Spline Outside Diameter (E): 1.500 Inch
Spline Count (F): 16
Greasable: Yes
Lube Fitting: 0641-B
Joint Angle: 20.0 Degree
Material: Steel
Dust Cap: ND3A

VMRS: 024-002-038

Driveshaft Slip Yoke Diagram Outside Snap Ring Style


Alternate Part Numbers / Interchanges:
Spicer 3-3-1561KX Slip Yoke Assembly

Compatible Parts:
Spicer 5-1350X U-Joint
Neapco ND3A Slip Yoke Dust Cap
Neapco 0641-B Grease Fitting

Sku: N3-3-1561KX
Vendor: Neapco
$131.48
