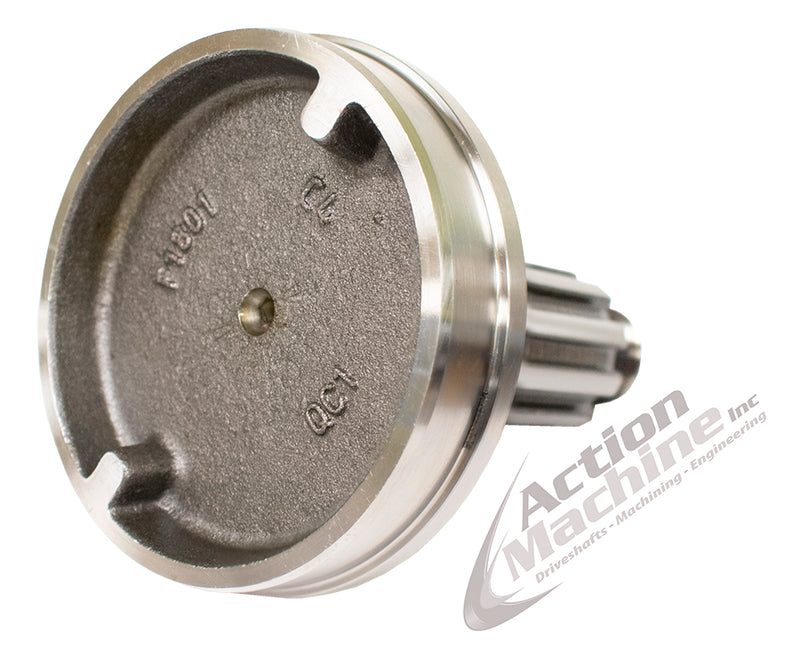

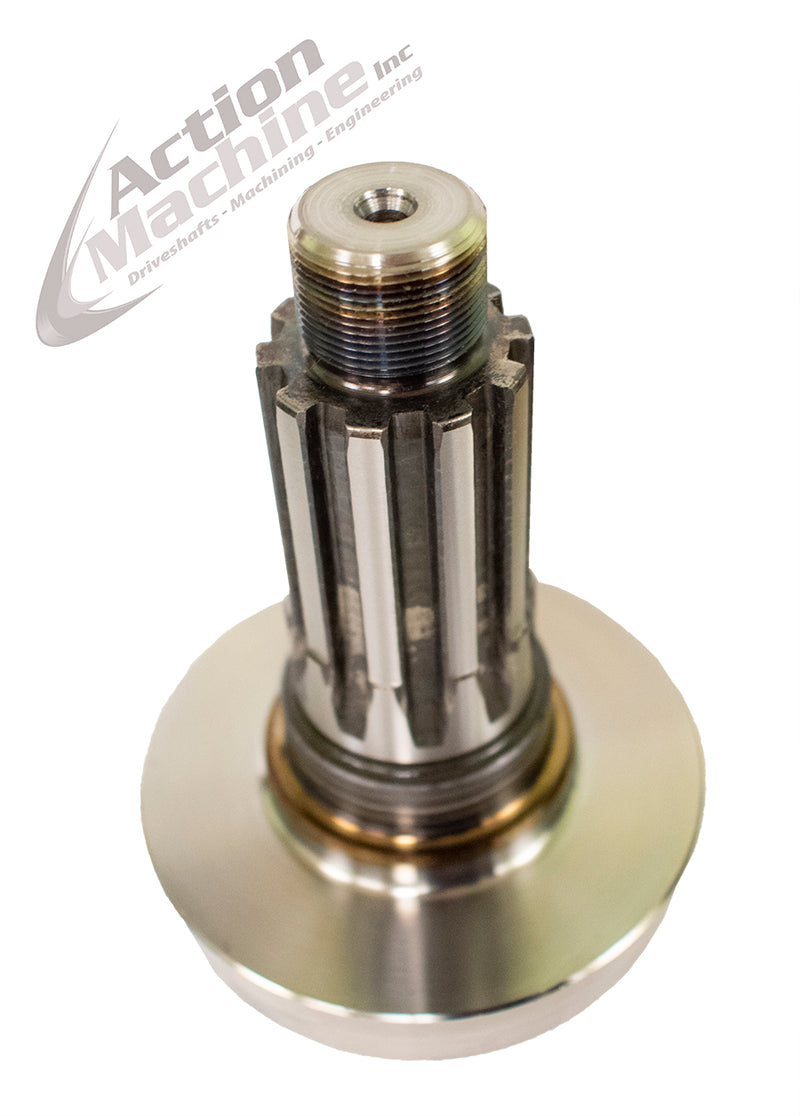

AMI 3-53-1801 Midship Tube Shaft

Vendor: Action Machine Inc., Sku: AMI_3-53-1801

Product Description

Midship Tube Shaft

Brand: Action Machine Inc
Spline O.D.: 1.500 Inch
Number Of Splines: 10
Involute: No
Fits Tube Diameter: 4.000 Inch
Fits Tube Wall: 0.083 Inch
Spline End To Brg Shoulder (Y): 2.750 Inch
Spline End To Weld (K): 3.875 Inch
Spline Length (L): 1.938 Inch
Thread Size: 1.000-20
Shoulder Diameter (B): 1.812 Inch
Shoulder Length (G): 1.125 Inch
Bearing Diameter (C): 1.574 Inch
Butt Diameter: 3.845 Inch
Bearing Diameter (Max/min): 1.5748 Inch /1.5743 Inch
VMRS: 024002060




Midship Tube Shaft

Sku: AMI_3-53-1801
$77.86
