PTI 2355-10 Rubber Flex Disc

Vendor: PTI, Sku: 2355-10

Product Description

Drive Shaft Rubber Flex Disc

(Giubo or Guibo Flex Disc)


Driveshaft Rubber Flex Disc
Guibo Disc




t

*



The body of these disc are made of aluminum with six rubber inserts. It is the rubber inserts that fail on the disc. The important measurement is the outside dimension of the bolt sleeves. It will be either 12MM (2355-10) or 14MM (2355-12)

Rubber Flex Discs often have the part number displayed on the original part.
Number of Bolt Holes:
6
Bolt Circle Diameter (A):
80.5 mm (3.169 Inch)
Bolt Hole Diameter (B):
8 mm (0.315 Inch)
Bolt Hole Pilot OD: 12 mm (0.472 Inch)
Disc Width (C):
20 mm (0.787 Inch)
Vehicle Fit:
Toyota Previa
Rubber Guibo Disc 6 Hole Measuring Guide


How to Measure a Driveshaft Slip Yoke.

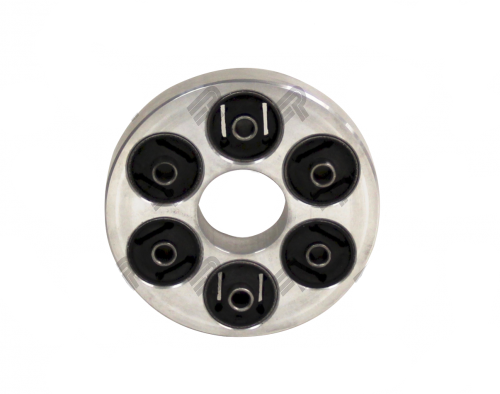

Aluminum disc with rubber insert for Toyota Previa accessory driveshaft.
Often the part is number is listed/stamped on the original part.

You can confirm vehicle fit & year by sending Action Machine a message with your VIN.

****


You can confirm vehicle fit by sending Action Machine a message with your VIN.

If you have any questions we are here to help
CONTACT US |  CHAT | (574) 287-9650

Sku: 2355-10
Vendor: PTI
$81.14
