Flange Yoke
Sort by:

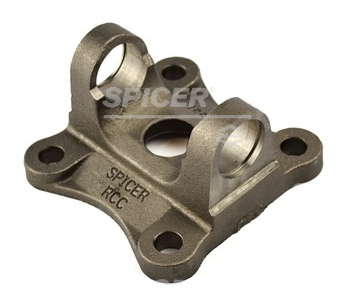

Spicer 3-2-1859 Flange Yoke
Flange Yoke | 3-2-1859
- Series: 1350
- Pilot Dia.: 2.953" F
- Outside Snap Ring
- U-joint: 1.188" X 3.625"
- Bolt Circle: 4.750"
- Manufacturer: Spicer/Dana
- Series: 1350
- Pilot Dia.: 2.953" F
- Outside Snap Ring
- Cap: 1.188" Width: 3.625"
- Bolt Circle: 4.750"
- Manufacturer: Spicer/Dana
$64.59
Spicer 3-2-1869 Flange Yoke
Flange Yoke | 3-2-1869
- Series: 1480
- Pilot Dia.: 2.953" F
- Outside Snap Ring
- U-joint: 1.375" X 4.188"
- Bolt Circle: 4.750"
- Manufacturer: Spicer/Dana
- Series: 1480
- Pilot Dia.: 2.953" F
- Outside Snap Ring
- Cap: 1.375" Width: 4.188"
- Bolt Circle: 4.750"
- Manufacturer: Spicer/Dana
$66.47
Spicer 3-2-429 Flange Yoke
Flange Yoke | 3-2-429
- Series: 1410
- Pilot Dia.: 3.750" M
- Outside Snap Ring
- U-joint: 1.188" X 4.188" X 4.438"
- Bolt Circle: 4.750"
- Manufacturer: Spicer/Dana
- Series: 1410
- Pilot Dia.: 3.750" M
- Outside Snap Ring
- Cap: 1.188" Width: 4.188" Width: 4.438"
- Bolt Circle: 4.750"
- Manufacturer: Spicer/Dana
$59.83
Spicer 3-2-499 Flange Yoke
Flange Yoke | 3-2-499
- Series: 1480
- Pilot Dia.: 6.625" M
- Outside Snap Ring
- U-joint: 1.375" X 4.188"
- Bolt Circle: 6.125"
- Manufacturer: Spicer/Dana
- Series: 1480
- Pilot Dia.: 6.625" M
- Outside Snap Ring
- Cap: 1.375" Width: 4.188"
- Bolt Circle: 6.125"
- Manufacturer: Spicer/Dana
$290.28
Spicer 3-2-809 Flange Yoke
Flange Yoke | 3-2-809
- Series: 1350
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- U-joint: 1.188" X 3.625"
- Bolt Circle: 3.750"
- Manufacturer: Spicer/Dana
- Series: 1350
- Pilot Dia.: 2.750" M
- Outside Snap Ring
- Cap: 1.188" Width: 3.625"
- Bolt Circle: 3.750"
- Manufacturer: Spicer/Dana
$74.57
Spicer 4-2-669 Flange Yoke
Flange Yoke | 4-2-669
- Series: 1550
- Pilot Dia.: 3.75" M
- Outside Snap Ring
- U-joint: 1.375" X 4.969"
- Bolt Circle: 4.750"
- Manufacturer: Spicer/Dana
- Series: 1550
- Pilot Dia.: 3.75" M
- Outside Snap Ring
- Cap: 1.375" Width: 4.969"
- Bolt Circle: 4.750"
- Manufacturer: Spicer/Dana
$123.22
Sold Out
Spicer 4-2-679 Flange Yoke
Flange Yoke | 4-2-679
- Series: 1550
- Pilot Dia.: 3.75" M
- Outside Snap Ring
- U-joint: 1.375" X 4.969"
- Bolt Circle: 4.750"
- Manufacturer: Spicer/Dana
- Series: 1550
- Pilot Dia.: 3.75" M
- Outside Snap Ring
- Cap: 1.375" Width: 4.969"
- Bolt Circle: 4.750"
- Manufacturer: Spicer/Dana
$232.81

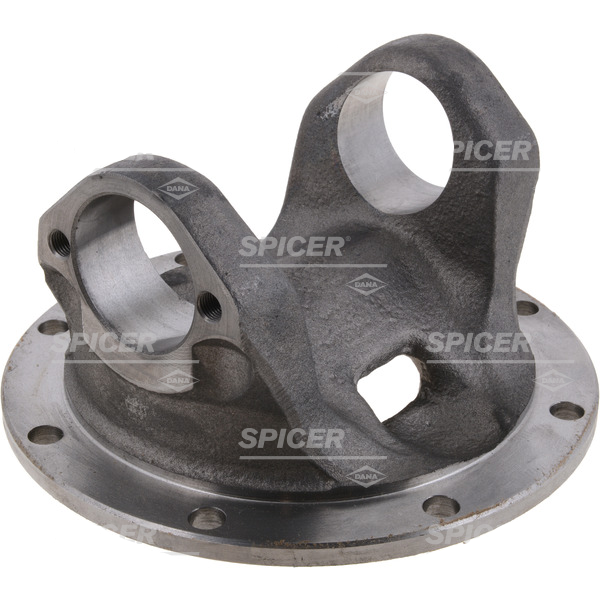

Spicer 6-2-739 Flange Yoke
Flange Yoke | 6-2-739
- Series: 1710
- Pilot Dia.: 7.750" M
- Bearing Plate
- U-joint: 1.938" X 6.094"
- Bolt Circle: 7.750"
- Manufacturer: Spicer/Dana
- Series: 1710
- Pilot Dia.: 7.750" M
- Bearing Plate
- Cap: 1.938" Width: 6.094"
- Bolt Circle: 7.750"
- Manufacturer: Spicer/Dana
$232.95

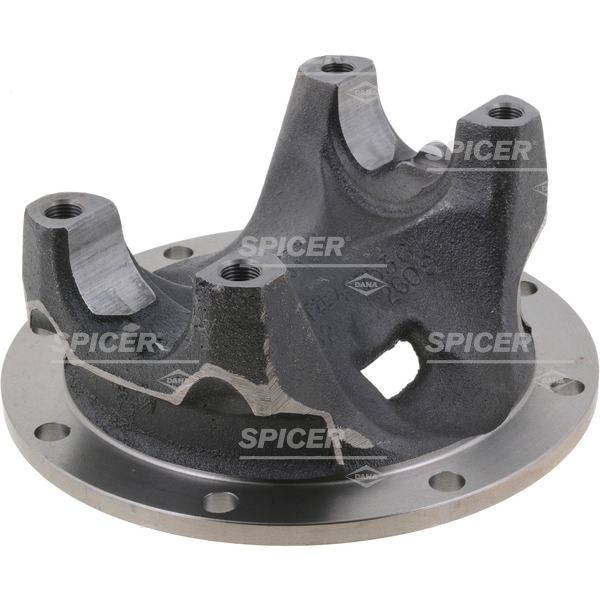

Spicer 6-2-739-1 Flange Yoke
Flange Yoke | 6-2-739-1
- Series: 1710
- Pilot Dia.: 7.750" M
- Bearing Plate
- U-joint: 1.938" X 6.094"
- Bolt Circle: 7.750"
- Manufacturer: Spicer/Dana
- Series: 1710
- Pilot Dia.: 7.750" M
- Bearing Plate
- Cap: 1.938" Width: 6.094"
- Bolt Circle: 7.750"
- Manufacturer: Spicer/Dana
$257.69

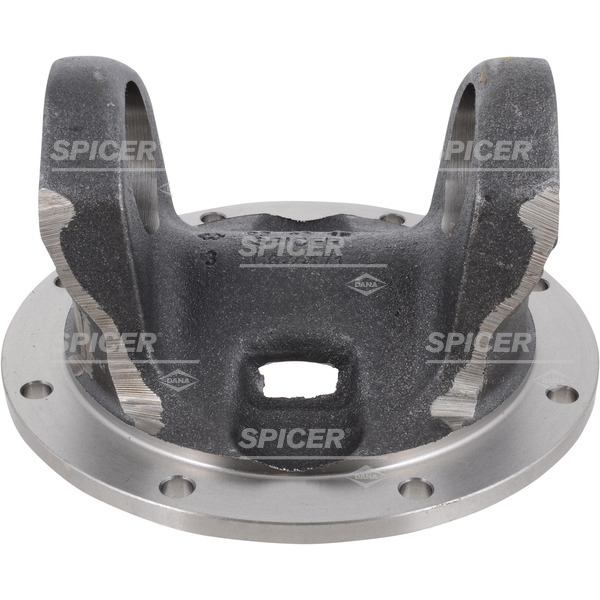

Spicer 6-2-749 Flange Yoke
Flange Yoke | 6-2-749
- Series: 1710
- Pilot Dia.: 7.750" M
- Bearing Plate
- U-joint: 1.938" X 6.094"
- Bolt Circle: 7.250"
- Manufacturer: Spicer/Dana
- Series: 1710
- Pilot Dia.: 7.750" M
- Bearing Plate
- Cap: 1.938" Width: 6.094"
- Bolt Circle: 7.250"
- Manufacturer: Spicer/Dana
$231.62
Spicer 90-2-19 Flange Yoke
Flange Yoke | 90-2-19
- Series: SPL 90
- Pilot Dia.: 6.624" M
- Outside Snap Ring
- U-joint: 1.625" X 4.957"
- Bolt Circle: 6.124"
- Manufacturer: Spicer/Dana
- Series: SPL 90
- Pilot Dia.: 6.624" M
- Outside Snap Ring
- Cap: 1.625" Width: 4.957"
- Bolt Circle: 6.124"
- Manufacturer: Spicer/Dana
$156.00
Spicer 90-2-39-1 Flange Yoke
Flange Yoke | 90-2-39-1
- Series: SPL 90
- Pilot Dia.: 6.438" M
- Outside Snap Ring
- U-joint: 1.625" X 4.957"
- Bolt Circle: 7.250"
- Manufacturer: Spicer/Dana
- Series: SPL 90
- Pilot Dia.: 6.438" M
- Outside Snap Ring
- Cap: 1.625" Width: 4.957"
- Bolt Circle: 7.250"
- Manufacturer: Spicer/Dana
$339.64
