PTI 3104-28 End Yoke

Vendor: PTI, Sku: 3104-28

Product Description

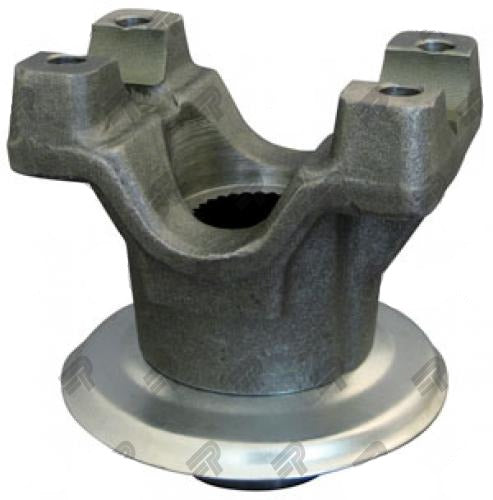

Drive Shaft End Yoke / Differential Yoke


The differential end yoke / pinion yoke transfers the power from the driveshaft to the pinion through a u-joint at the end of the driveshaft. This allows the driveshaft to spin while the rear differential travels up and down with the suspension.




t

*



U-Joint Series: 1310
Style: Outside Snap Ring
U-Joint Cap Diameter (A): 1.063 Inch
U-Joint Width (B): 3.219 Inch
End Yoke Length(C) :
- Center Line to End of Spline
4.000 Inch
Hub Diameter (D): 1.812 Inch
Spline Diameter (E):
- From Farthest Point to Farthest Point
1.218 Inch
Number of Splines (F): 28
Bore Length (G): 2.425 Inch
Rear Axle Type:
Ford 9.00 Inch

VMRS: 024-001-003


How to Measure a Driveshaft Slip Yoke.

Application:




Vehicle Information:





****


This part is compatible with:
U-Bolt Kit: 2-94-28X

For assistance measuring your end yoke/pinion yoke you can use our:
End Yoke Measuring Guide
