Weasler 700-7130 Roll Pin Yoke

Vendor: Weasler, Sku: 700-7130

Previous Product | Next Product
Product Description

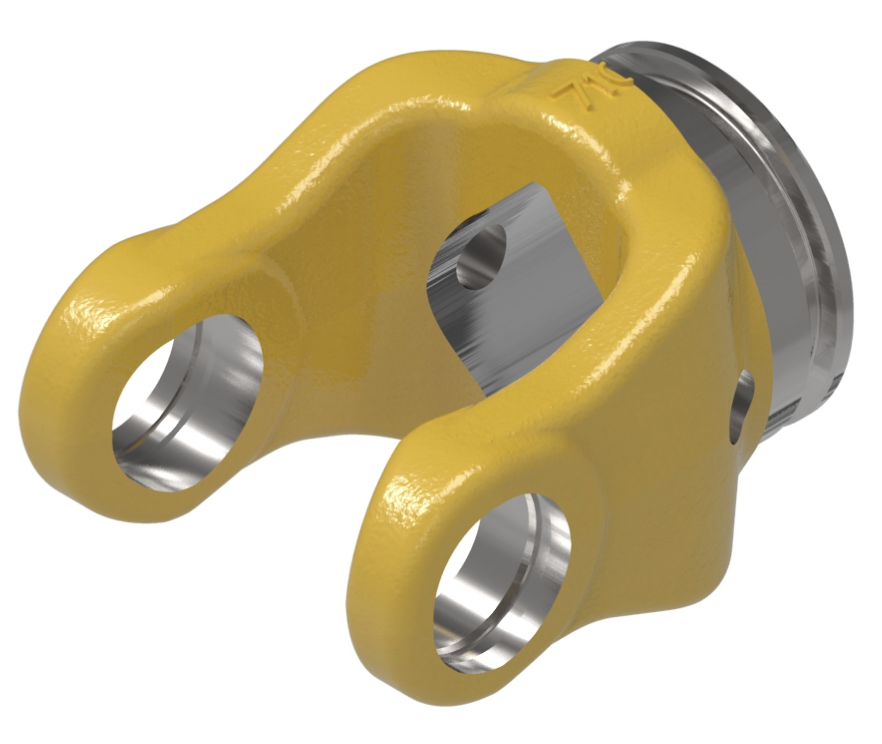

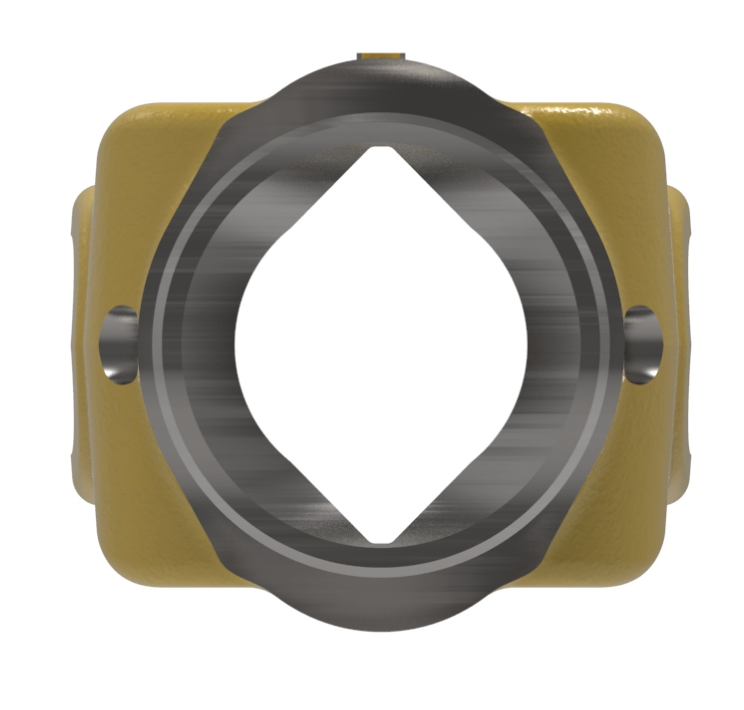

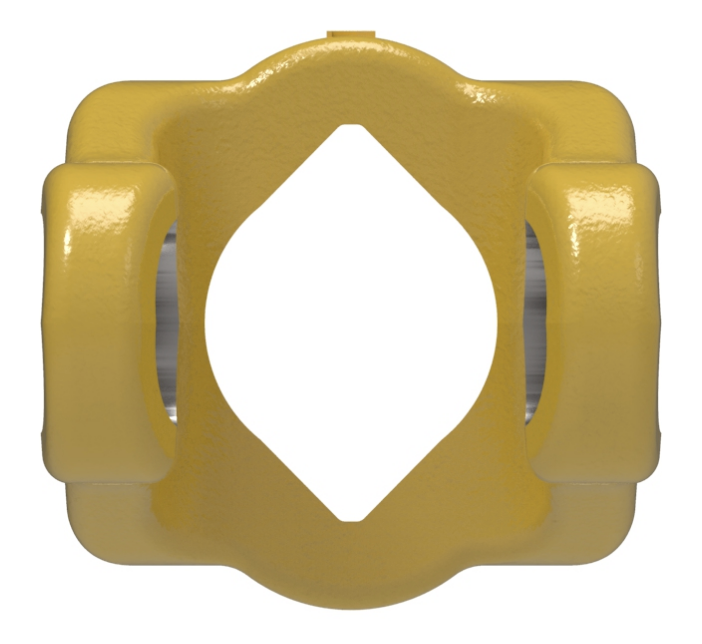

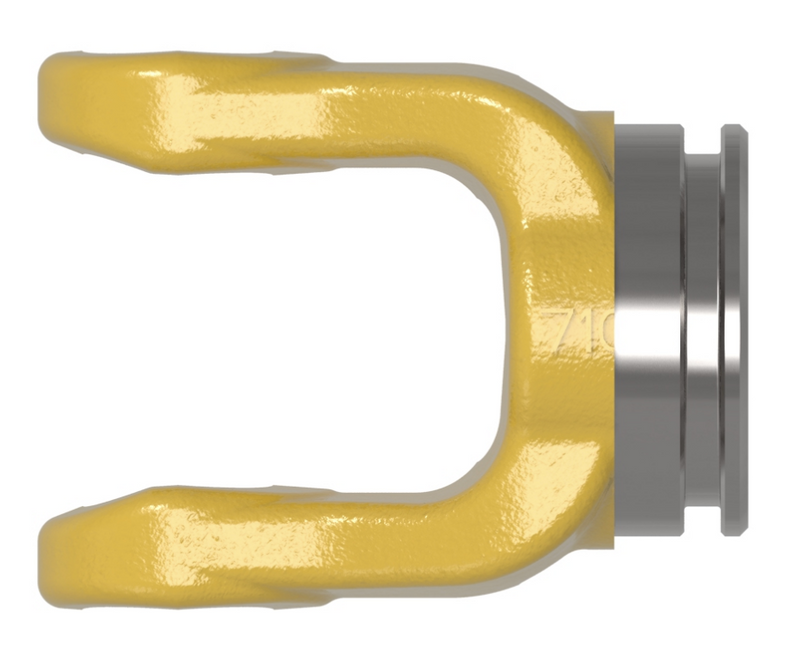

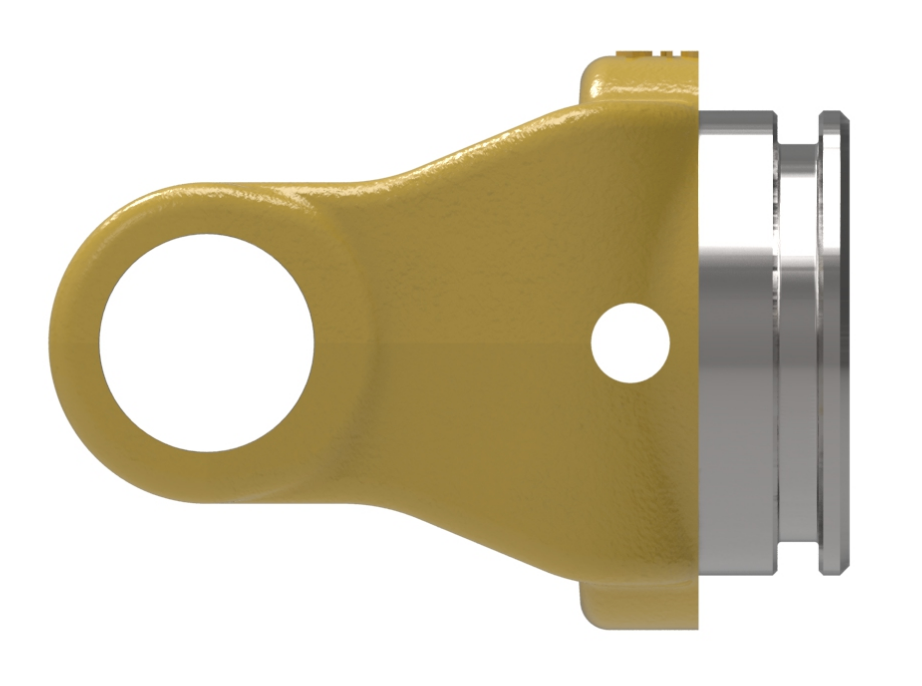

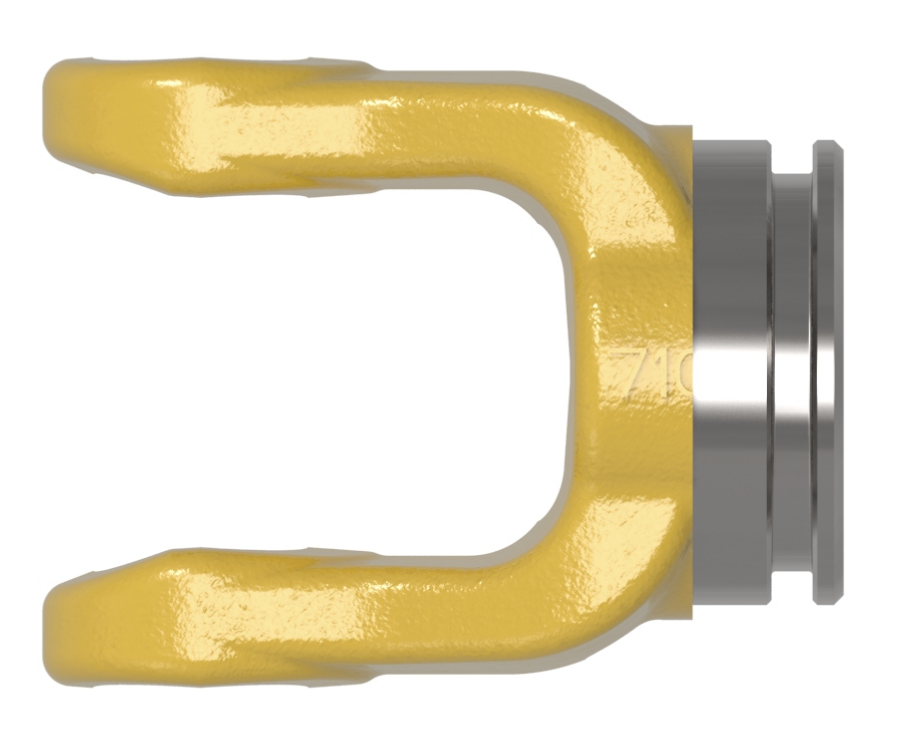

AW10 Series Roll Pin Yoke

AW10 series yoke with 30 mm lemon bore and roll pin connection. Note: Image color may not represent actual part.

Shaft yokes (or inner profile yokes) connect the cross and bearing kits to the telescoping shaft or inner tube. Tube yokes (or outer profile yokes), connect the other cross and bearing kits to the opposite side of the telescoping shaft or outer tube. Weasler provides both domestic (North American) and Weasler Profile metric shaft and tube yoke connection options. Domestic yokes are provided as square, rectangle, hexagon or splined in shape. Weasler Profile metric yokes are provided as lemon, star, or trilobe in shape.

PERFORMANCE BENEFITS

Specifications

Bore 1 1.18 inches (30 mm)
Bore 1 30 MM LEMON
Connection 1 ROLL PIN
Height 2.80 inches (71 mm)
HP@1000RPM 29 HP (22 kilowatts)
HP@540RPM 19 HP (14 kilowatts)
Length 2.59 inches (66 mm)
Outside Diameter 1.85 inches (47 mm)
Pin Hole 0.31 inches (8 mm)
Shipping Dimensions 3.23" L  ×  2.8" H  ×  2.32" W
(8cm L  ×  7cm H  ×  6cm W)
Shipping Volume 20.98 in3 (344 cm3)
Weight 1.04 pounds
Width 2.32 inches (59 mm)



How to Measure a Driveshaft Slip Yoke.

Application for the 9.5"

GM
 Rear Axle 9.5" 14 Bolt - Rear Axle


Vehicle Information

Pinion seal will be necessary on all application before 2000.

GM 9.5" 1 TON GM PICKUP 1982 - 1995 (REAR)
1 TON GM VAN 1982 - 1995 (REAR)
1/2 TON GM PICKUP 1988 - 2006 (REAR)
3/4 TON GM PICKUP 1979 - 2006 (REAR)
3/4 TON GM VAN 1981 - 2006 (REAR)
AVALANCHE 2002 - 2006 (REAR)
H2 2003 - 2006 (REAR)
SUBURBAN 3/4 TON 1988 - 2005 (REAR)



****
