Weasler 101-6506 Safety Slide Lock Yoke

Vendor: Weasler, Sku:

Previous Product | Next Product
Product Description

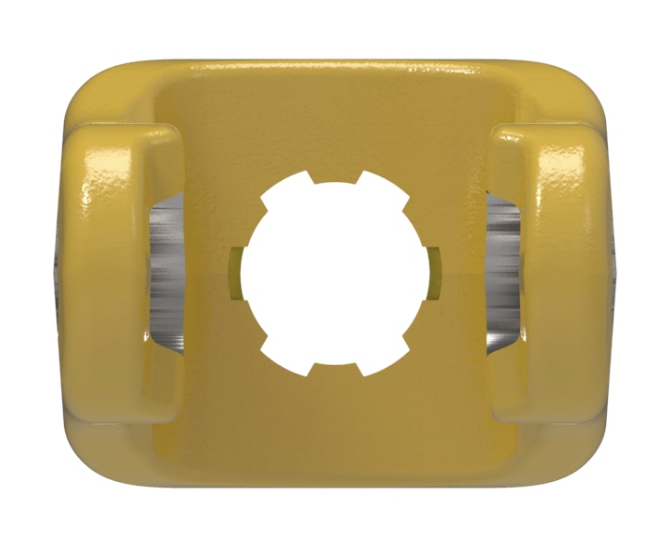

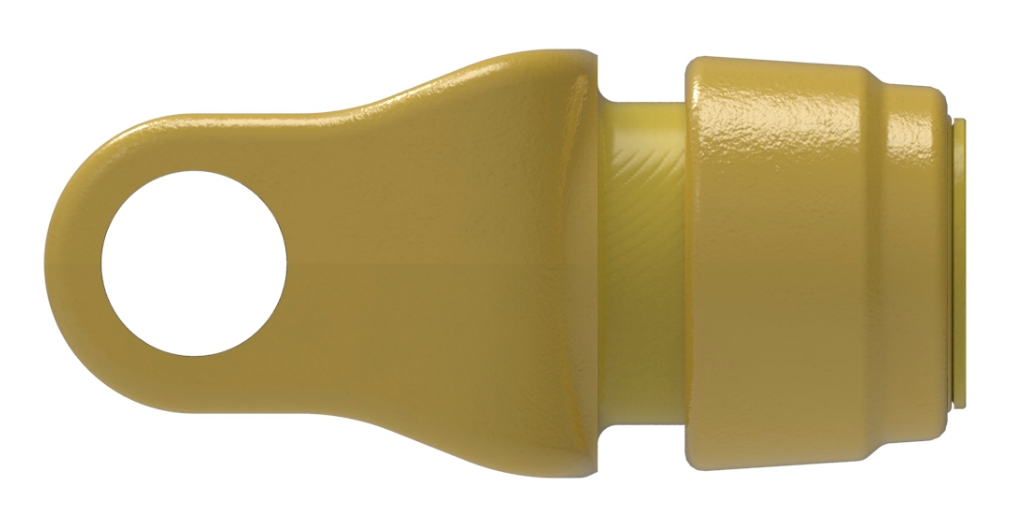

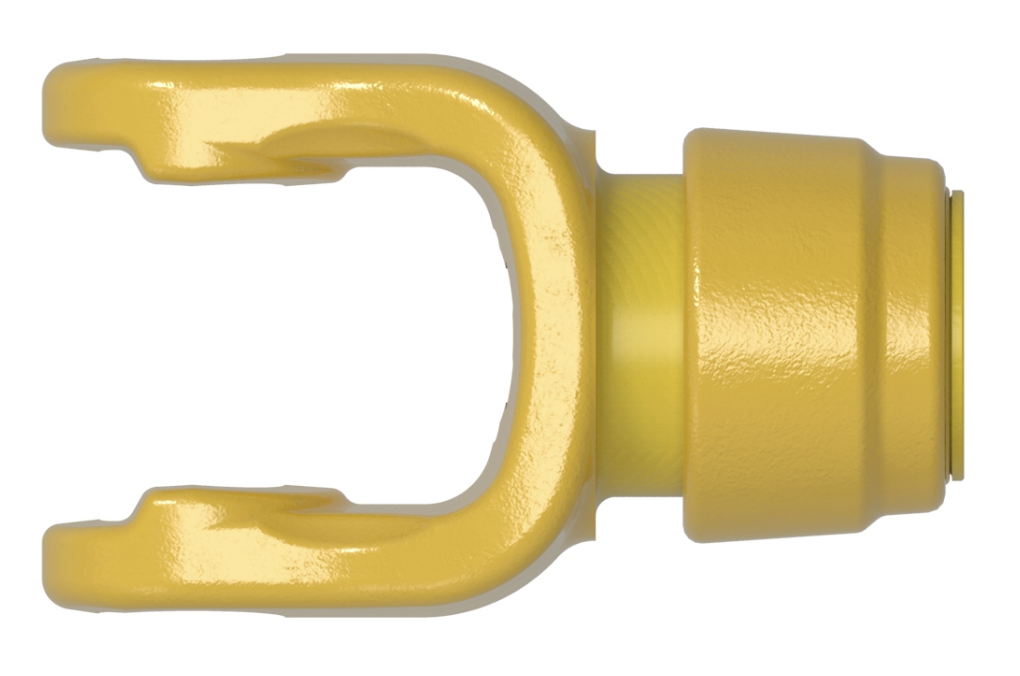

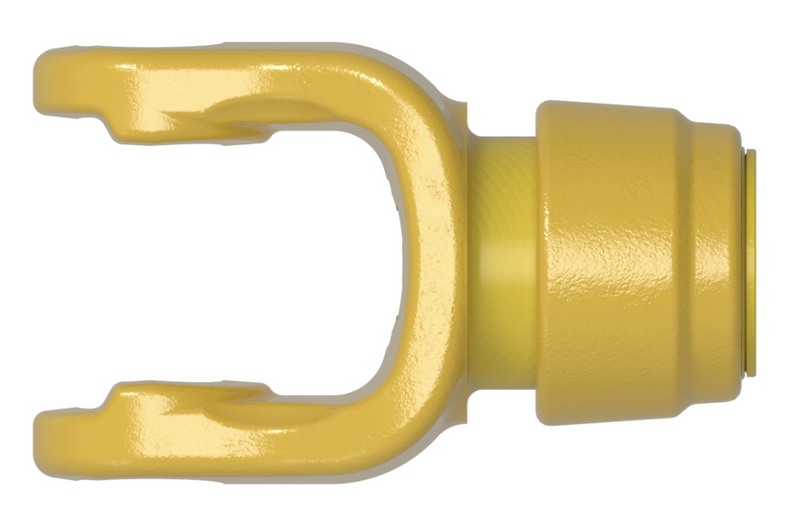

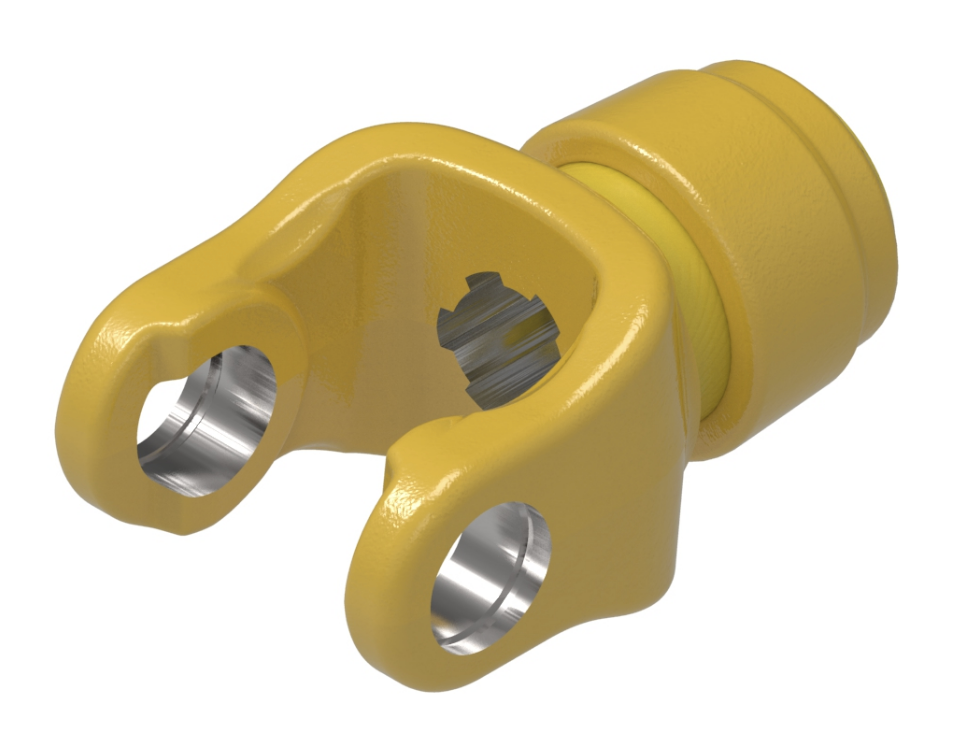

Drive Shaft Safety Slide Lock Yoke - Agricultural

AB5 series yoke with 1 3/8-6 spline bore and safety slide lock connection. Note: Image color may not represent actual part.

PTO drive shafts start with a tractor yoke, the leading connection between the the tractor and the driveline. Weasler provides four types of Tractor Yokes: auto-lok, safety slide lock, spring-lok and quick disconnect. All yokes are compliant with ANSI/ASABE AD5673, ANSI/ASABE AD5674, ANSI/ASABE S604 and EN12965. For lawn and garden applications, specialized auto-lok and spring-lok yokes are available in addition to a male spline yoke. Agricultural tractor yokes are offered in 1 3/8″ 6-spline (type 1), 1 3/8″ 21-spline (type 2), and 1 3/4″ 20-spline (type 3) options to fit the specific tractor connection needed. Optionally 1 1/2″ 8-spline and 1 3/4″ 6-spline options are available. Lawn & Turf tractor yokes are offered in 1″ 10-spline and 1″ 15-spline.

PERFORMANCE BENEFITS

Specifications

Bore 1: 1.37 Inches (35 mm)
Bore 1: 1 3/8-6 SPLINE
Connection 1: SAFETY SLIDE LOCK
Height: 4.09 Inches (104 mm)
HP@1000RPM: 100 HP (75 kilowatts)
HP@540RPM: 65 HP (48 kilowatts)
Length: 4.96 Inches (126 mm)
Shipping Dimensions: 5.93" L  ×  4.09" H  ×  2.76" W
(15cm L  ×  10cm H  ×  7cm W)
Shipping Volume: 66.94 in3 (1097 cm3)
Weight: 4.50 pounds (2 kilograms)
Width: 2.76 inches (70 mm)



How to Measure a Driveshaft Slip Yoke.

Application for the 9.5"

GM
 Rear Axle 9.5" 14 Bolt - Rear Axle


Vehicle Information

Pinion seal will be necessary on all application before 2000.

GM 9.5" 1 TON GM PICKUP 1982 - 1995 (REAR)
1 TON GM VAN 1982 - 1995 (REAR)
1/2 TON GM PICKUP 1988 - 2006 (REAR)
3/4 TON GM PICKUP 1979 - 2006 (REAR)
3/4 TON GM VAN 1981 - 2006 (REAR)
AVALANCHE 2002 - 2006 (REAR)
H2 2003 - 2006 (REAR)
SUBURBAN 3/4 TON 1988 - 2005 (REAR)



****

If you have any questions we are here to help:
CONTACT US |  CHAT | (574) 287-9650

Sku:
Vendor: Weasler
$224.73
Maximum quantity available reached.
.
