Custom Driveshafts with Slip Yoke
| These Driveshafts fit the 273D, BW4447, NP271, NP273, NV271 transfer case with the 34 spline out put shaft. These driveshafts can also fit 2003-2018 4X4 RAM 2500/3500, consider the length and horse power of your custom driveshaft. |
Action Machine offers custom driveshafts for the 273D, BW4447, NP271, NP273, and NV271 transfer case (34 spline), built to your exact length and balanced for a smooth ride. Each complete driveshaft includes u-joints and a slip yoke, ready for easy installation. Plus, enjoy free shipping on your order! Get a high-quality, precision-built driveshaft without the hassle. Order yours today!
Completely Customizable
- Pick your driveshaft below and tell us your custom length.
- Add any compatible differential hardware or a flange if required.
- Tell us if you need any additional modifications.
|
Order Forms: |
If you have any questions we are here to help: CHAT | PHONE (574)287-9650 | CONTACT US
(B) Custom Driveshafts with Slip Yoke
Custom Driveshaft & Slip Yoke - 5" Al. 1555, Chrysler 34 Spline (Sku: 5A1555-B)
Custom Driveshaft & Slip Yoke | 5A1555-B_40038047
- Tube Dia.: 5.00" OD
- Length: Max 85.75" CL-CL
- Material: Aluminum
- Spline Count: 34
- Barrel Diameter: 2.300"
- Series: 1555
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
- Tube Dia.: 5.00" OD
- Length: Max 85.75" CL-CL
- Material: Aluminum
- Spline Count: 34
- Barrel Diameter: 2.300"
- Series: 1555
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
Custom Driveshaft & Slip Yoke - 5" Al. 1480, Chrysler 34 Spline (Sku: 5A1480-B)
Custom Driveshaft & Slip Yoke | 5A1480-B_40055528
- Tube Dia.: 5.00" OD
- Length: Max 85.75" CL-CL
- Material: Aluminum
- Spline Count: 34
- Barrel Diameter: 2.300"
- Series: 1480
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
- Tube Dia.: 5.00" OD
- Length: Max 85.75" CL-CL
- Material: Aluminum
- Spline Count: 34
- Barrel Diameter: 2.300"
- Series: 1480
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
Custom Driveshaft & Slip Yoke - 5" Al. 1410, Chrysler 34 Spline (Sku: 5A1410-B)
Custom Driveshaft & Slip Yoke | 5A1410-B
- Tube Dia.: 5.00" OD
- Length: Max 85.75" CL-CL
- Material: Aluminum
- Spline Count: 34
- Barrel Diameter: 2.300"
- Series: 1410
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
- Tube Dia.: 5.00" OD
- Length: Max 85.75" CL-CL
- Material: Aluminum
- Spline Count: 34
- Barrel Diameter: 2.300"
- Series: 1410
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
Custom Driveshaft & Slip Yoke - 4" Stl. 1480, Chrysler 34 Spline (Sku: 4S1480-B)
Custom Driveshaft & Slip Yoke | 4S1480-B
- Tube Dia.: 4.00" OD
- Length: Max 68" CL-CL
- Material: Steel
- Spline Count: 34
- Barrel Diameter: 2.200"
- Series: 1480
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
- Tube Dia.: 4.00" OD
- Length: Max 68" CL-CL
- Material: Steel
- Spline Count: 34
- Barrel Diameter: 2.200"
- Series: 1480
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
Custom Driveshaft & Slip Yoke - 4" Stl. 1410, Chrysler 34 Spline (Sku: 4S1410-B)
Custom Driveshaft & Slip Yoke | 4S1410-B
- Tube Dia.: 4.00" OD
- Length: Max 68" CL-CL
- Material: Steel
- Spline Count: 34
- Barrel Diameter: 2.300"
- Series: 1410
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
- Tube Dia.: 4.00" OD
- Length: Max 68" CL-CL
- Material: Steel
- Spline Count: 34
- Barrel Diameter: 2.300"
- Series: 1410
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
Custom Driveshaft & Slip Yoke - 4" Al. 1480, Chrysler 34 Spline (Sku: 4A1480-B)
Custom Driveshaft & Slip Yoke | 4A1480-B_40055528
- Tube Dia.: 4.00" OD
- Length: Max 72.5" CL-CL
- Material: Aluminum
- Spline Count: 34
- Barrel Diameter: 2.300"
- Series: 1480
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
- Tube Dia.: 4.00" OD
- Length: Max 72.5" CL-CL
- Material: Aluminum
- Spline Count: 34
- Barrel Diameter: 2.300"
- Series: 1480
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
Custom Driveshaft & Slip Yoke - 4" Al. 1410, Chrysler 34 Spline (Sku: 4A1410-B)
Custom Driveshaft & Slip Yoke | 4A1410-B
- Tube Dia.: 4.00" OD
- Length: Max 68" CL-CL
- Material: Aluminum
- Spline Count: 34
- Barrel Diameter: 2.300"
- Series: 1410
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
- Tube Dia.: 4.00" OD
- Length: Max 68" CL-CL
- Material: Aluminum
- Spline Count: 34
- Barrel Diameter: 2.300"
- Series: 1410
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271

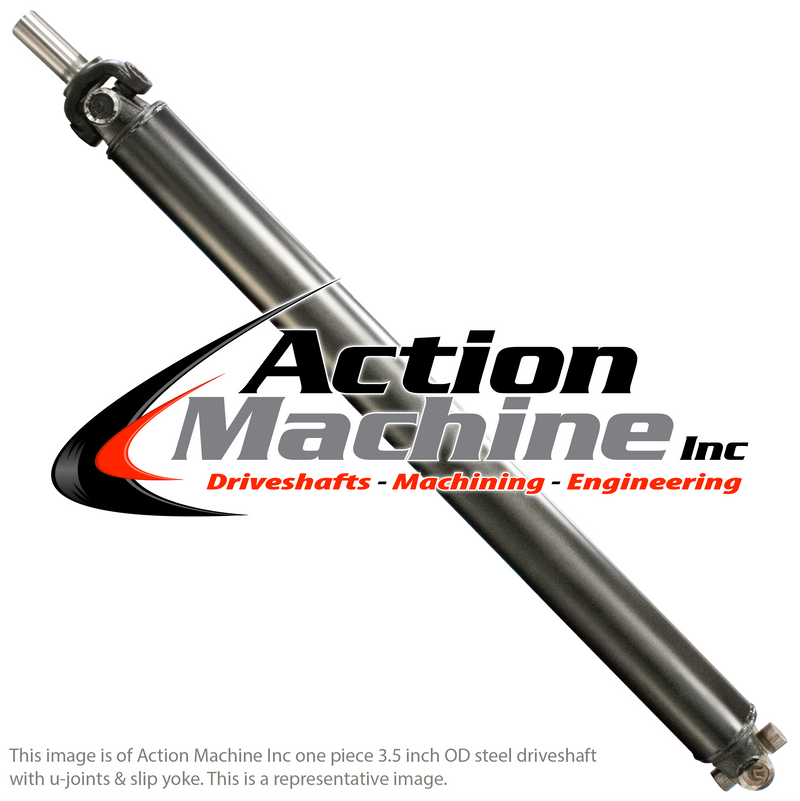

Custom Driveshaft & Slip Yoke - 3.5" Stl. 1480, Chrysler 34 Spline (Sku: 3.5S1480-B)
Custom Driveshaft & Slip Yoke | 3.5S1480-B
- Tube Dia.: 3.50" OD
- Length: Max 61" CL-CL
- Material: Steel
- Spline Count: 34
- Barrel Diameter: 2.200"
- Series: 1480
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
- Tube Dia.: 3.50" OD
- Length: Max 61" CL-CL
- Material: Steel
- Spline Count: 34
- Barrel Diameter: 2.200"
- Series: 1480
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
Custom Driveshaft & Slip Yoke - 3.5" Stl. 1410, Chrysler 34 Spline (Sku: 3.5S1410-B)
Custom Driveshaft & Slip Yoke | 3.5S1410-B
- Tube Dia.: 3.50" OD
- Length: Max 61" CL-CL
- Material: Steel
- Spline Count: 34
- Barrel Diameter: 2.200"
- Series: 1410
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
- Tube Dia.: 3.50" OD
- Length: Max 61" CL-CL
- Material: Steel
- Spline Count: 34
- Barrel Diameter: 2.200"
- Series: 1410
Transfer Case Model:
,
273D
,
NP271
,
NP273
,
NV271
