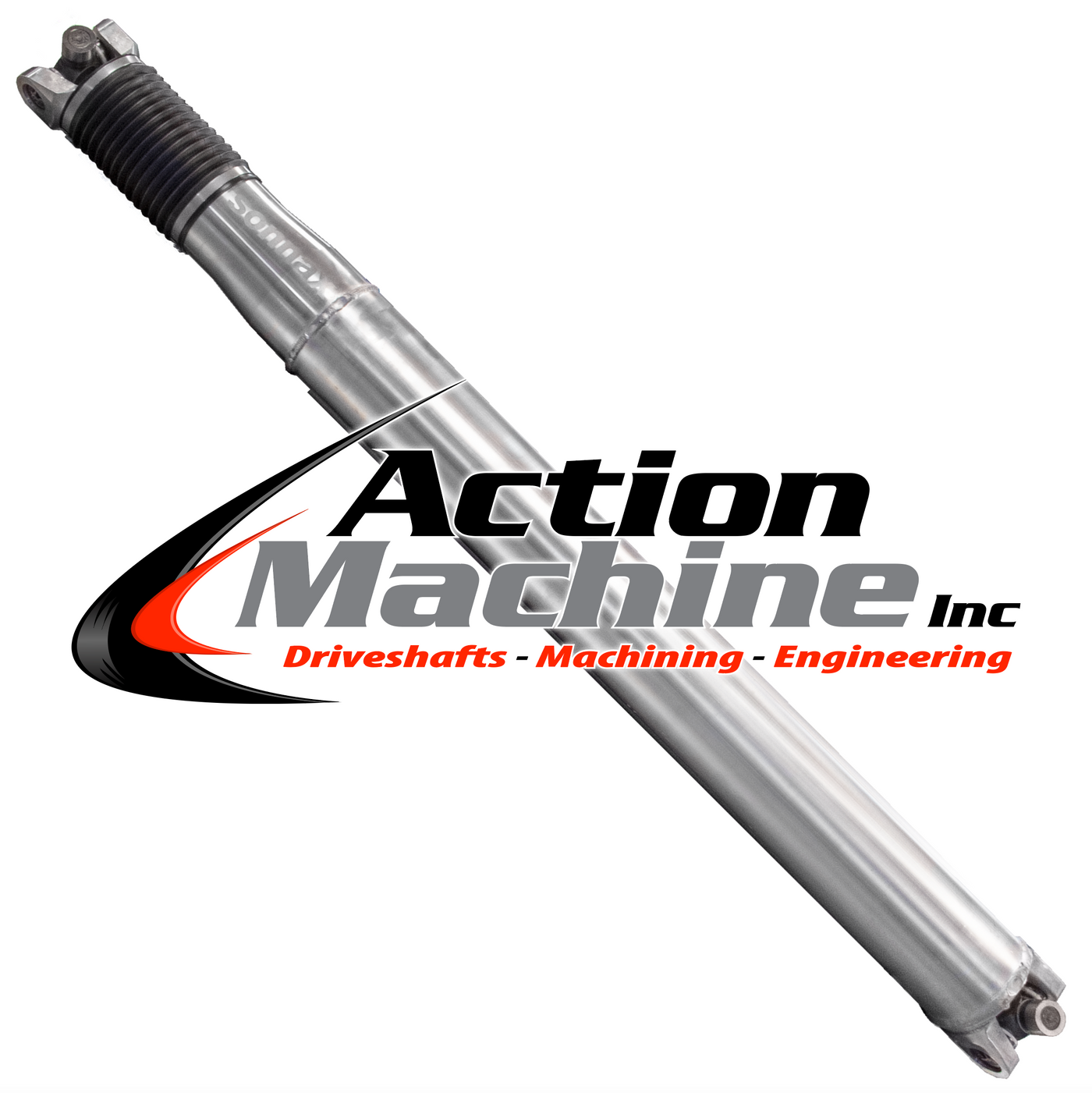

Custom One Piece Driveshaft - 4" Aluminum 1350 Slip & Spline

Vendor: Action Machine Inc., Sku: 4A1350-Slip

Exceeding Industry Standards

Quality Aluminum Driveshafts


When you need a driveshaft that is lightweight, can handle higher torque loads and can give you a nice polish finish, then consider an Action Machine aluminum driveshaft. The Action Machine aluminum driveshaft is ideally suited for street rods, show cars, race cars and as OEM aluminum replacements. While other driveline shops may use .065" wall or .083" wall tubing for their aluminum driveshafts, our volume purchasing allows us to use .125" wall tube for the same price as the thinner tube. You have the best in aluminum performance no matter your application.


  • Seamless 6061-T6 Tubing
  • Precision Balancing
  • Premium Spicer U-Joints
  • Variable Length Options
  • Lifetime Warranty on our Welds
  • Fast Turn Around Time
  • Product Description

    Custom One Piece Driveshaft - Aluminum, 4 Inch OD, 1350 Series, Slip & Spline

    FREE GROUND SHIPPING INSIDE THE USA
    (This product does not qualify for international shipping)

    Weld Yoke Material:
    Aluminum 6061-T6 Forged Yoke
    Tube Material: 0.125 Inch Wall 6061-T6 Seamless
    Tube Outside Diameter: 4.0 Inch OD (Measuring Guide - Tube OD)
    U-Joints:

    Spicer/Dana 1350 Series Premium Non-Greasable
    U-Joint Size: 1 3/16 Inch Cap X 3 5/8 Inch Span

    (Measuring Guide - U-Joint)

    Max Custom Length: Up to 72.5 Inches - Center to Center of U-Joint
    (Measuring Guide - Driveshaft Length)
    Driveshaft length required for build.
    Slip & Spline Travel: +/- 1.5 Inch

    Heavy Duty 4 Inch Aluminum Driveshaft

    This driveshaft is designed with a 1350 series u-joint on the front and rear. Use this driveshaft to upgrade your existing one piece driveshaft or to convert your two piece driveshaft into a heavy duty one piece. We will need you to measure your vehicle for proper fit.  Measuring is very easy to do - just follow the diagram below.

    Two piece steel driveshafts are notorious for vibrations and component failures.  Countless customers complain of their two piece shaft having repeated and expensive carrier bearing failures, vibrations or shudders.  Our Aluminum driveshaft eliminates the carrier bearing for a stronger, more reliable driveshaft.

    This driveshaft is heavy duty from end to end and is a very popular upgrade. The Aluminum tubing is 4 inch OD Kaiser premium aluminum seamless material that is 1/8 inch thick -- rated for over 7,000 ft/lbs of torque!  It will handle even the heaviest towing loads. Most of the OEM one piece aluminum shafts are only 0.083 inch thick.

    The driveshaft comes fully assembled, balanced and ready to bolt in.  Installation is as simple as bolting up the 1350 series U-joints.  You do need to check for clearance when upgrading your tube diameter.  Before install check that the new bigger tube wont rub your vehicle. The carrier bearing cross members may need to be removed.

    You won't be disappointed with your heavy duty 1350 series 4 inch aluminum driveshaft.  Time and again customers are impressed at how well made the driveshaft is and better yet, how it helps solve vibration and carrier bearing problems - no matter if is a daily driver, over the road towing rig or pulling truck.




    Required Driveshaft Measurements:

    You can place your order today and we will send a follow up email requesting your driveshaft length or your can submit your measurement below. Measure from the tran. case center of u-joint to the center of the U-joint on the end yoke or to the flat of the flange face on the rear. We cannot complete your driveshaft order until we have your driveshaft length.





    If you have any questions we are here to help:
      CHAT | PHONE (574)287-9650 | CONTACT US


    FREE GROUND SHIPPING INSIDE THE USA
    (This product does not qualify for international shipping)


    Ship Time:

    All driveshafts are custom built to your specification. Current lead time is 2 weeks from time of order.

    $1,155.68
    Using the diagram above enter your required driveshaft length making sure not to exceed the maximum length.

    Maximum quantity available reached.
    Add on Option

    Rear Flange Yoke:

    Does your Driveshaft need a flange yoke on the rear end? Add both your driveshaft and flange yoke to the cart and we will build you a complete driveshaft balanced and ready for intstall.

    .
